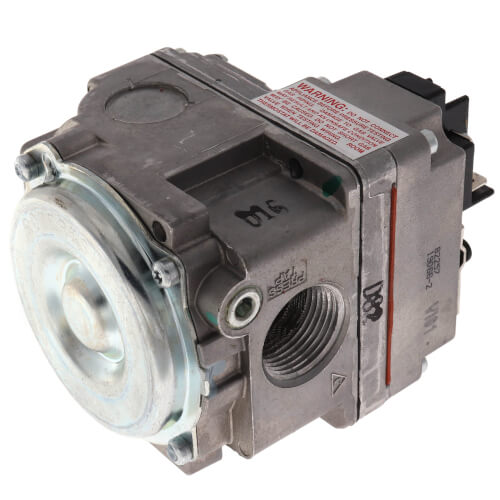

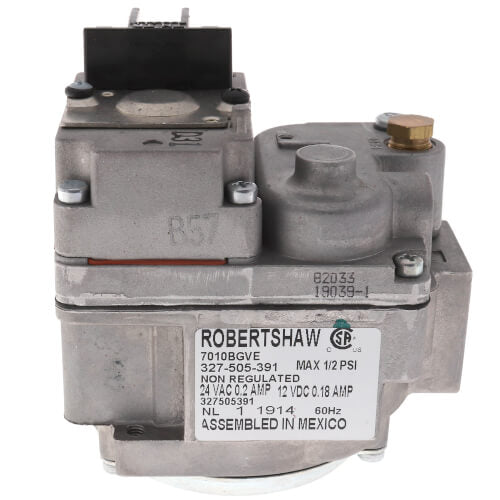

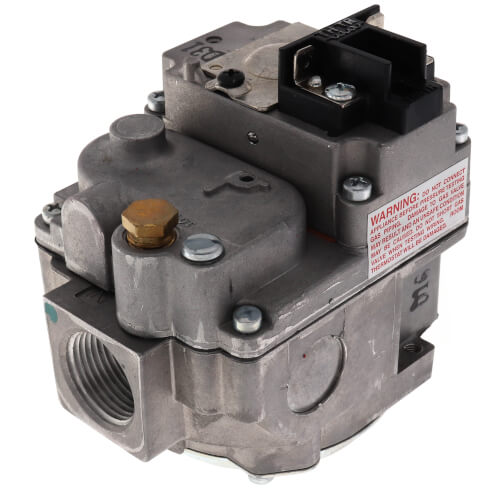

Robertshaw 700-417 3/424vGAS VLV, NonReg, NoMagnet

Product Description

The Robertshaw 700-417 is a non-regulating 3/4 gas valve designed for applications requiring efficient gas flow control. This valve operates at 24 volts and does not include a magnet, making it suitable for various industrial uses.

• 3/4 inch size for versatility in many applications.
• Non-regulating operation for precise gas flow control.
• Durable design for long-term reliability.

Product Highlights

This valve is ideal for heating systems, boilers, and other industrial processes where reliability and robust performance are critical.

Product Information

Standard Information

• Brand: Robertshaw
• MPN: 700-417

Technical Specifications

• Electrical Rating: 12 VDC 0.18 amps, 24 VAC 0.2 amps 50/60 Hz
• Pressure Regulator: Factory set at 3.5 W.C.
• Pilot Outlet: 1/4 tubing
• Maximum Inlet Pressure: 14 W.C. (1/2 PSI)
• Ambient Temperature: 40 to 175 degrees F
• Item Number: 700-417
• Shipping Weight: 1.9 lbs
• Dimensions: 4.8 inches (length) x 5.95 inches (width) x 3.45 inches (height)
