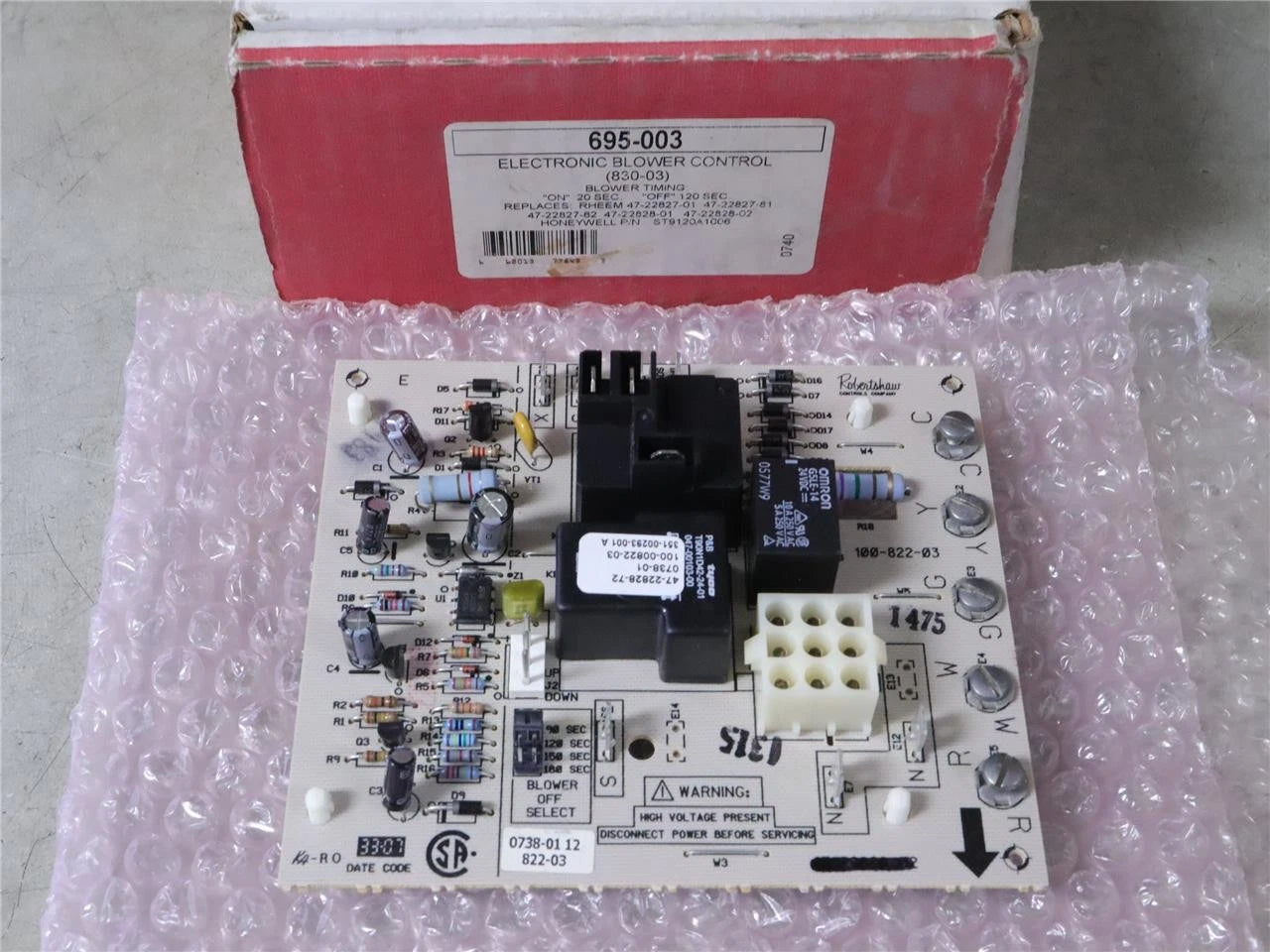

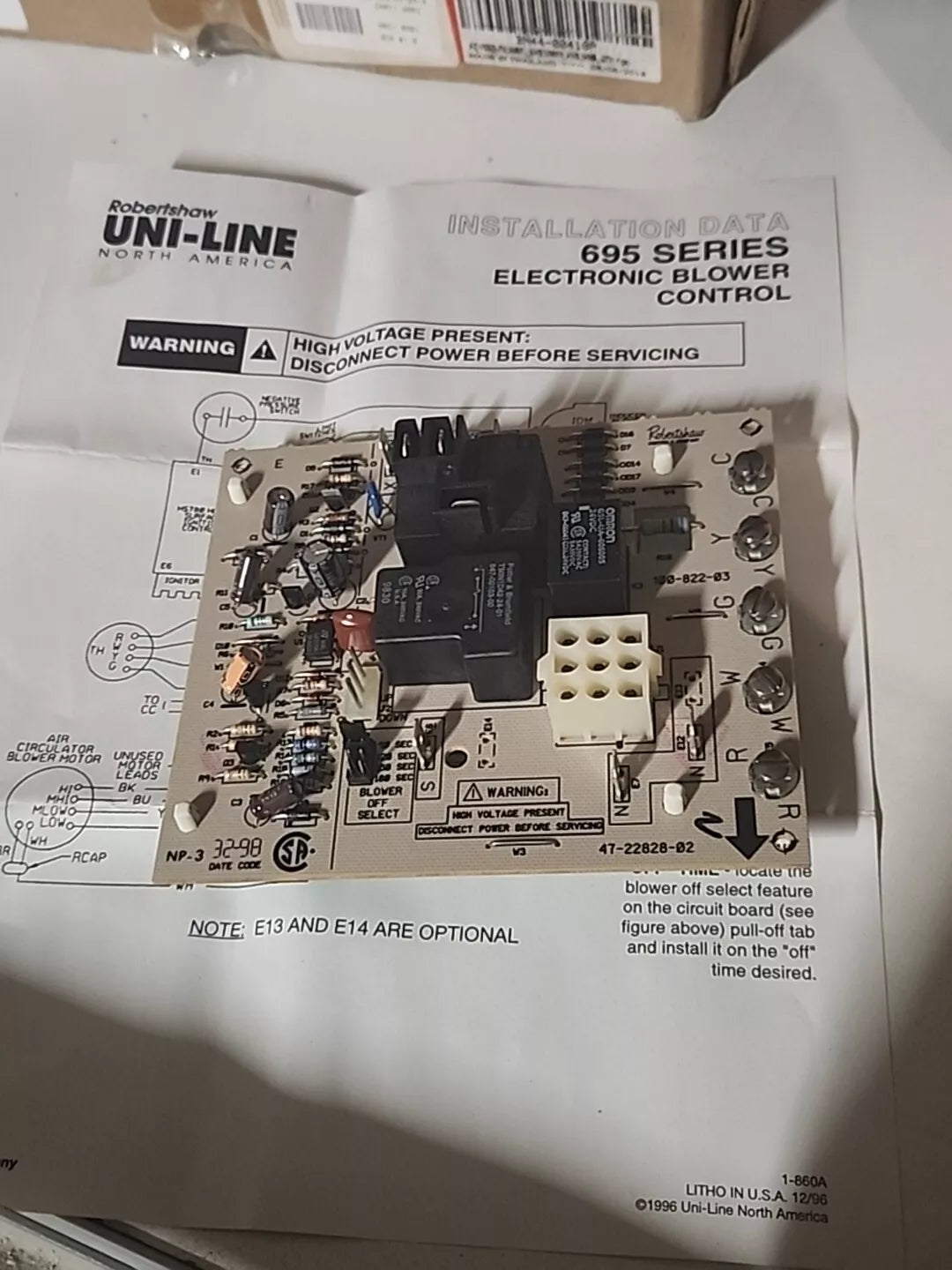

Robertshaw 695-003 Electronic Blower Control Board

Product Description

The Robertshaw 695-003 is an electronic blower control board intended for heating and cooling systems. This board effectively manages both the induced draft blower and the circulating blower in various thermostat modes.

• Functions with an input voltage of 115V AC at 60 Hz.
• Designed to operate within a temperature range of -40 degrees Fahrenheit to 176 degrees Fahrenheit.
• Compatible with Rheem equipment as an original equipment manufacturer (OEM) component.

Product Highlights

This control board activates the induced draft blower when there is a call for heat. A pressure switch confirms the blower’s operation, allowing the gas valve to turn on, followed by an 'On' delay. After this delay, the circulating blower is energized and runs until the heating requirement is met, at which point an adjustable 'Off' delay commences, keeping the blower running until it times out.

Product Information

Standard Information

• Brand: Rheem
• Model: 695-003

Technical Specifications

• Series Application: Electronic Blower Control
• Temperature Range: -40 degrees Fahrenheit to 176 degrees Fahrenheit
• Control Voltage: 18-30V AC
• Input Voltage: 115V AC at 60 Hz
• Type: Fan Control
• Weight: 0.2
• Cubic Measurement: 0.0035
• Height: 6 inches
• Length: 0.25 inches
• Width: 4 inches
