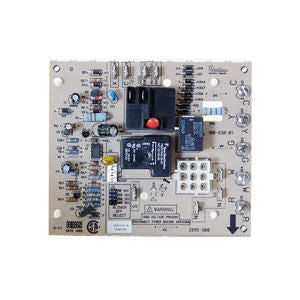

Robertshaw 695-001 Electronic Blower Control 115 VAC 60 Hz Input 18 - 30 VAC

Product Description

The Robertshaw 695-001 is an electronic blower control designed for HVAC systems. This control operates at an input voltage of 115 VAC and a frequency of 60 Hz, with a control voltage range of 18 to 30 VAC. It is suitable for a variety of blower applications.

• Operates at 115 VAC and 60 Hz
• Control voltage range from 18 to 30 VAC
• Suitable for various blower applications

Product Highlights

The 695-001 provides reliable performance under varying conditions, making it a key component in HVAC systems.

Product Information

Standard Information

• Manufacturer: Robertshaw
• Manufacturer Part Number: 695-001

Technical Specifications

• Input Voltage: 115 VAC, 60 Hz
• Control Voltage: 18 - 30 VAC
• Inducer Current: 2.5 FLA, 3.5 LRA at 110/120 VAC; 1.5 FLA, 1.75 LRA at 220/240 VAC
• Blower Current: 11.0 FLA, 24.5 LRA at 110/120 VAC; 11.0 FLA, 24.5 LRA at 220/240 VAC
• Operating Temperature: -40 to 176 degrees F
• Humidity: 95% non-condensing
• Series: 695
