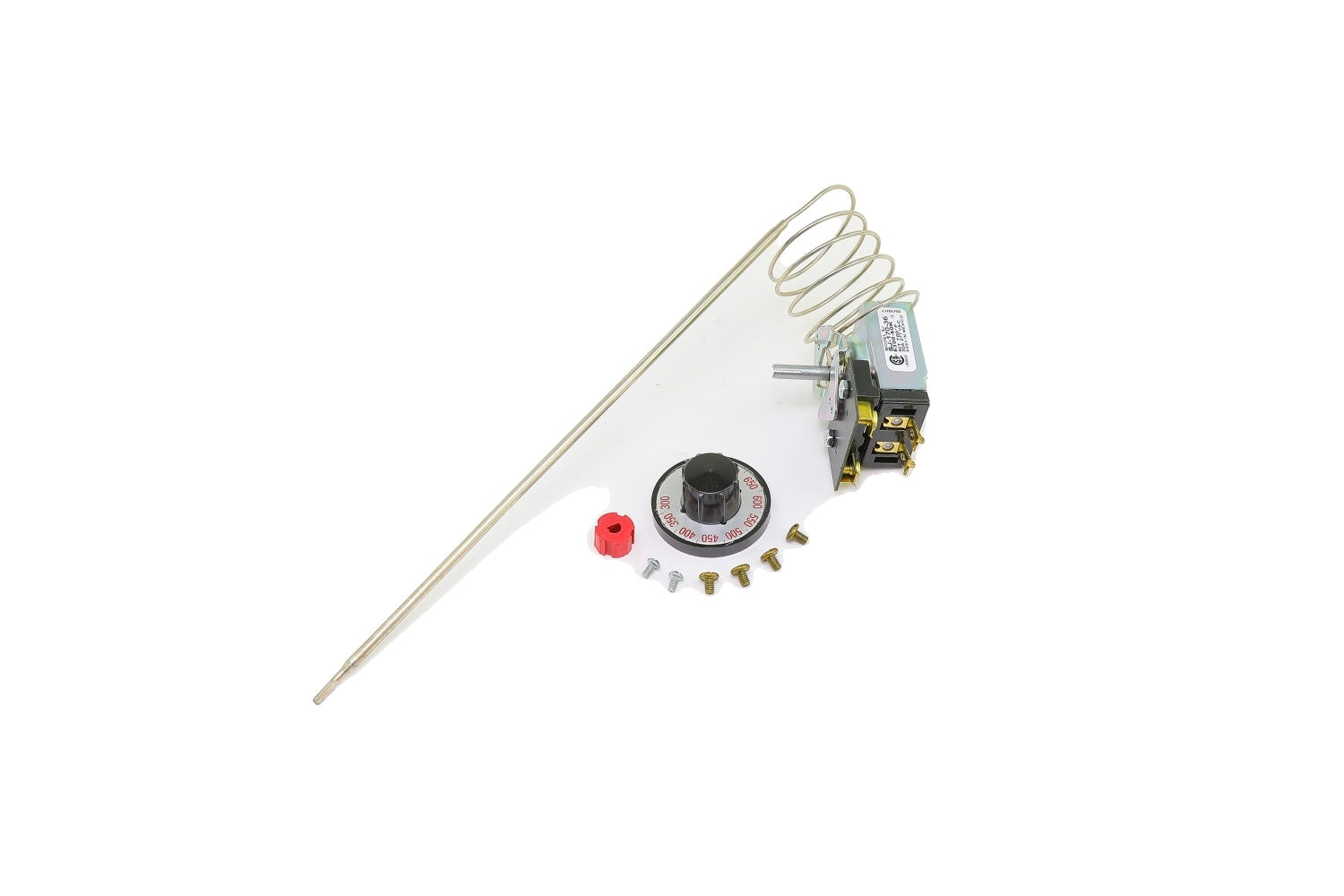

Robertshaw 5300-500 Series Electric Thermostat 277VAC Hardwired

Product Description

The Robertshaw 5300-500 is a robust SPST, snap-acting thermostat offering precise control for heating systems. Optimized for both standard and pilot-duty operations, this model is versatile and reliable in a range of settings.

• Operates within a temperature range of 300 degrees Fahrenheit to 700 degrees Fahrenheit.
• Incorporates an auxiliary switch that can replace standard controls.
• Features a durable 36-inch capillary and a mechanical differential of 12 degrees Fahrenheit.

Product Highlights

Equipped with a 4-way dial, this thermostat allows for easy adjustments and monitoring. The electrical ratings include a resistive load of up to 277V AC at 30 Amps and an inductive load capacity up to 18 Amps full load.

Product Information

Standard Information

• Brand: Robertshaw
• MPN: 5300-500

Technical Specifications

• Temperature Control Range: 300°F to 700°F
• Capillary Length: 36 inches
• Bulb Size: 3/16 inch x 12.25 inch Nickel
• Electrical Rating - Resistive Load: 277V AC at 30 Amps
• Electrical Rating - Inductive Load: 250V AC at 72 Amps Lock Rotor
• Dial Type: 4-Way
• Mounting Type: #6, Kit
