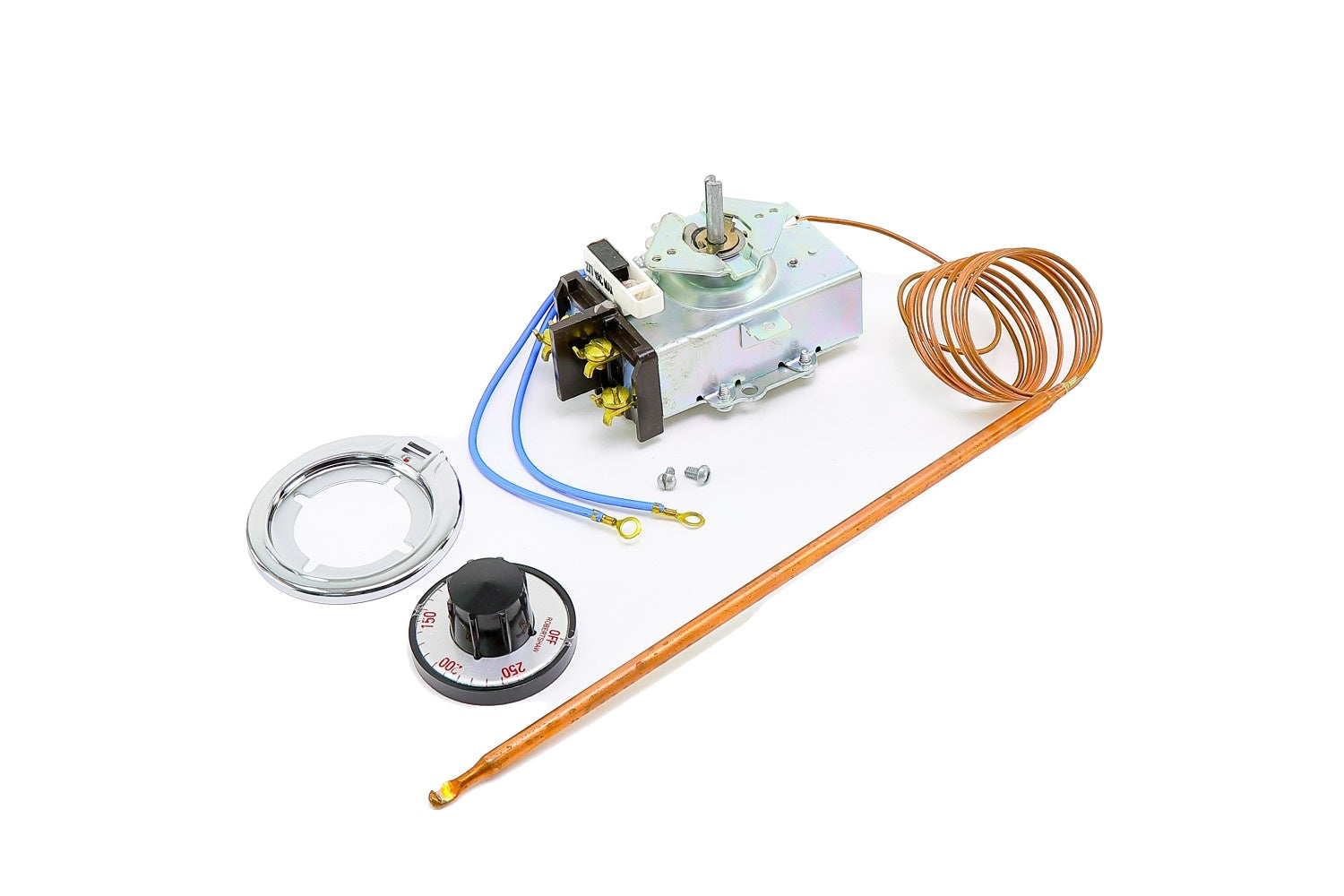

Robertshaw 5000-814 Commercial Electric Thermostat Kit 60 inch Capillary

Product Description

The Robertshaw 5000-814 Commercial Electric Thermostat offers precise temperature control for a range of commercial applications. Engineered for durability and reliability, it employs a double pole, single throw (DPST) snap-action mechanism with a positive off switch for safety.

• Equipped with a robust 60 inch capillary and a sensor bulb of 1/4 inch by 9-1/2 inches.
• Designed for demanding applications, supporting a temperature range from 60°F to 250°F.
• Features mounting option #1, catering to diverse installation requirements.

Product Highlights

Robertshaw's trusted engineering delivers a mechanically controlled, easy-to-operate thermostat with instantaneous response and non-fatiguing mechanics. This product is ideal for commercial kitchens or industrial environments needing dependable service.

Product Information

Standard Information

• Electrical Rating: 120/277V AC at 30 Amps, 480V AC at 10 Amps
• Capillary Length: 60 inches
• Bulb Size: 1/4 inch by 9-1/2 inches
• Dial Type: 4-Way
• Mechanical Differential: 6°F
• Mounting Type: #1

Technical Specifications

• Series Application: 5000 Series (D1 & D18) Commercial Electric Thermostats
• Materials: Bulb and capillary available in copper, nickel plated copper, or stainless steel
• Diaphragm Construction: Dual stainless steel, electrically welded
• Terminals: Configured in four positions for flexibility in wiring
• Temperature Control Range: 60°F to 250°F
