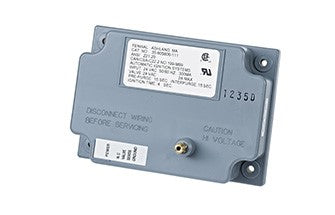

Robertshaw 35-605606-111 35 Series Direct Spark Controls

Product Description

The Robertshaw 35-605606-111 is part of the 35 Series Direct Spark Controls designed for efficient gas burner management. This unit uses a microprocessor for accurate timing and control of ignition. It includes a 15-second pre-purge and inter-purge cycle, enhancing safety and performance. With the capability of making three ignition attempts before a lockout occurs, it also includes an automatic reset feature after one hour. Flame sensing is available during pre-purge to ensure safe operation.

• Uses a gray Noryl fire-retardant plastic enclosure.
• Operates on a control voltage of eighteen to thirty volts alternating current at fifty to sixty hertz.
• Rated for a gas valve capacity of two amps at twenty-four volts alternating current.

Product Highlights

This ignition control board is designed to reduce inventory space and costs while maintaining reliable performance.

Product Information

Standard Information

• Brand: Robertshaw
• MPN: 35-605606-111

Technical Specifications

• Series Application: 35-60 Series, 24 Volt Direct Spark Ignition
• Flame Sensor Method: Remote
• Pre-Purge Duration: 15 seconds
• Construction Material: Gray Noryl
• Inter-Purge Duration: 15 seconds
• Auto Reset: Yes
• Electrical Rating: 24V AC 300 mA
• Ignition Attempts Before Lockout: 3
• Trial for Ignition: 4
• Connection Type: Edge Connector
• Gas Valve Rating: 2.0 Amps @ 24V AC
• Control Voltage: 18-30V AC 50/60 Hz
