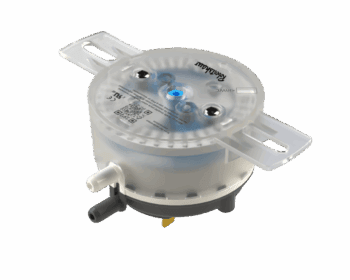

Robertshaw 2374-523 SPDT Differential Air Pressure Switch 2.0 inches - 10.0 inches WC

Product Description

The Robertshaw 2374-523 is a differential air pressure switch suitable for residential and light commercial applications. This model features a setpoint range from two inches to ten inches in water column. It is adjustable in the field, allowing easy installation and configuration.

• Field-adjustable for positive, negative, or differential air pressure.
• Includes a diaphragm and an integral snap-acting SPDT switch.
• Comes with necessary mounting bracket and 2 feet of 3/16 inch ID tubing.

Product Highlights

This switch is ideal for use in furnaces, air cleaners, and humidifiers. Its durable design ensures reliability in varying temperatures.

Product Information

Standard Information

• Ambient Temperature: -40°F to 190°F
• Switch Type: SPDT

Technical Specifications

• Setpoint Range: 2.0 inches - 10.0 inches W.C.
• Mounting Position: Vertical
• Operating Temperature Range: -40°F to 190°F (-40°C to 88°C)
• Electrical Load: 1/4 HP @ 120 to 277 VAC
• Sample Line Connections: Positive and negative connections
• Life Expectancy: Minimum 100,000 cycles
• Material: Glass-filled polycarbonate body with silicone diaphragm
• Model: 2374-523
