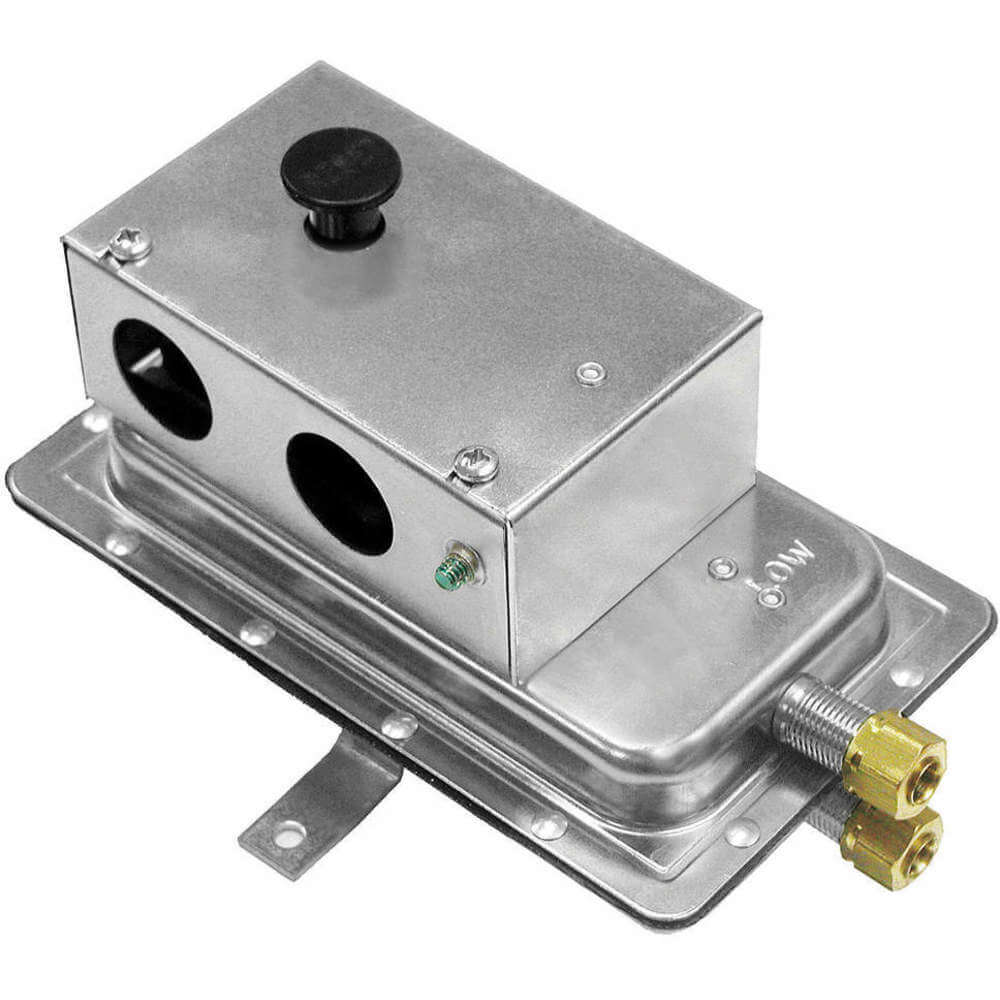

ROBERTSHAW 2374-507 Pressure Switch

Product Description

The ROBERTSHAW 2374-507 is a pressure sensing switch used for air filtration, commercial and residential HVAC systems, furnace control, and humidity detection. This switch can sense positive, negative, or differential air pressure. It features a customizable control setpoint that ranges from zero point zero six to zero point eight inches of water column.

• Adjustable pressure setpoint for custom control
• Suitable for various air pressure sensing applications
• Includes mounting hardware and adjustment tool for easy installation

Product Highlights

The switch operates in temperatures from minus forty degrees Fahrenheit to one hundred ninety degrees Fahrenheit, ensuring functionality in various conditions. It is designed to be mounted vertically and comes with integral compression sample line connectors that fit one eighth, one quarter, or three eighths tubing.

Product Information

Standard Information

• Brand: ROBERTSHAW
• MPN: 2374-507

Technical Specifications

• Orientation: Vertical
• Fuse Type: Switch
• Number of Phases: 1
• Weight: 1.25 lbs
• Width: 3.25 inches
• Length: 6.9 inches
• Switch: SPDT
• Maximum Pressure: 0.5 PSI
• Temperature Range: -40°F to 190°F
• Electrical Rating: 5 Amps @ 120-277V AC
• Depth: 3.25 inches
• Sample Line Connector: Integral Compression
