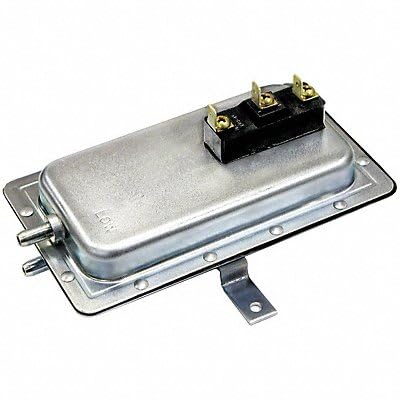

Robertshaw 2374-506 Pressure Switch Fixed 0.02

Product Description

The Robertshaw 2374-506 Pressure Switch is a crucial component for HVAC and general-purpose applications where a nonadjustable, open-mounted switch is required. Designed for reliability and efficiency, this model ensures accurate sensing of positive, negative, or differential air pressure.

• Easy installation with a 1/4 inch slip-on sample line connector
• Robust SPDT switch type with a pressure setting range of 0.05 in WC
• Operational across a wide temperature range from -40 to 180 degrees Fahrenheit

Product Highlights

This pressure switch is optimally designed for applications in duct heaters, ovens, and other HVAC or energy management systems. It supports pilot duty electrical ratings up to 300 VA at voltages from 115 to 277V AC, ensuring versatility across different setups.

Product Information

Standard Information

• Model: 2374-506
• Electrical Rating: 300 VA Pilot Duty at 115 to 277V AC

Technical Specifications

• Width: 3 1/4 inches
• Height: 6 1/8 inches
• Depth: 3 1/4 inches
• Mounting Holes O.C.: 2 15/16 inches
• Agency Compliance: CSA Certified, UL listed
• Operating Temperature Range: -40 to 180 degrees Fahrenheit
