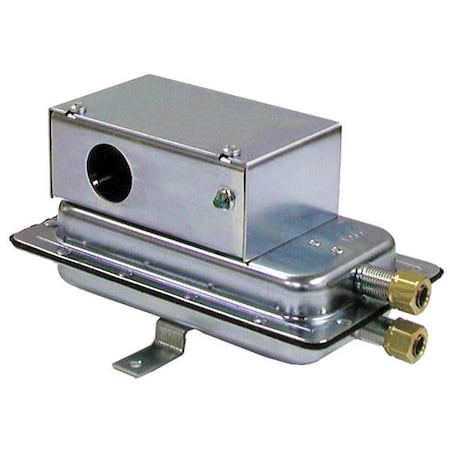

Robertshaw 2374-500 Pressure Sensing Switch SPDT 0.05 to 12.0 Inches W.C.

Product Description

The Robertshaw 2374-500 pressure sensing switch is engineered for precision in HVAC and general purpose applications. Robust and reliable, this switch operates with differential pressure from 0.02 to 0.8 inches water column and offers a broad set-point range from 0.05 to 12.0 inches water column.

• Equipped with an SPDT switch type.
• Features integral compression sample line connector.
• Designed for vertical mounting.

Product Highlights

This pressure switch is constructed to endure extreme temperature ranges from -40 to 180 degrees Fahrenheit, making it ideal for a variety of environmental conditions.

Product Information

Standard Information

• Brand: Robertshaw
• MPN: 2374-500

Technical Specifications

• Type: HVAC/General Purpose
• Operating Temp. Range: -40 to 180 degrees Fahrenheit
• Electrical Rating: 300 VA Pilot Duty at 115 to 277V AC, 15 amps Noninductive to 277V AC
• Switch Type: SPDT
• Mounting: Vertical
• Includes: 2 Slip-on Tubing Adapters and Mounting Screws
• Agency Compliance: CSA Certified, UL listed
• Country of Origin: United States
