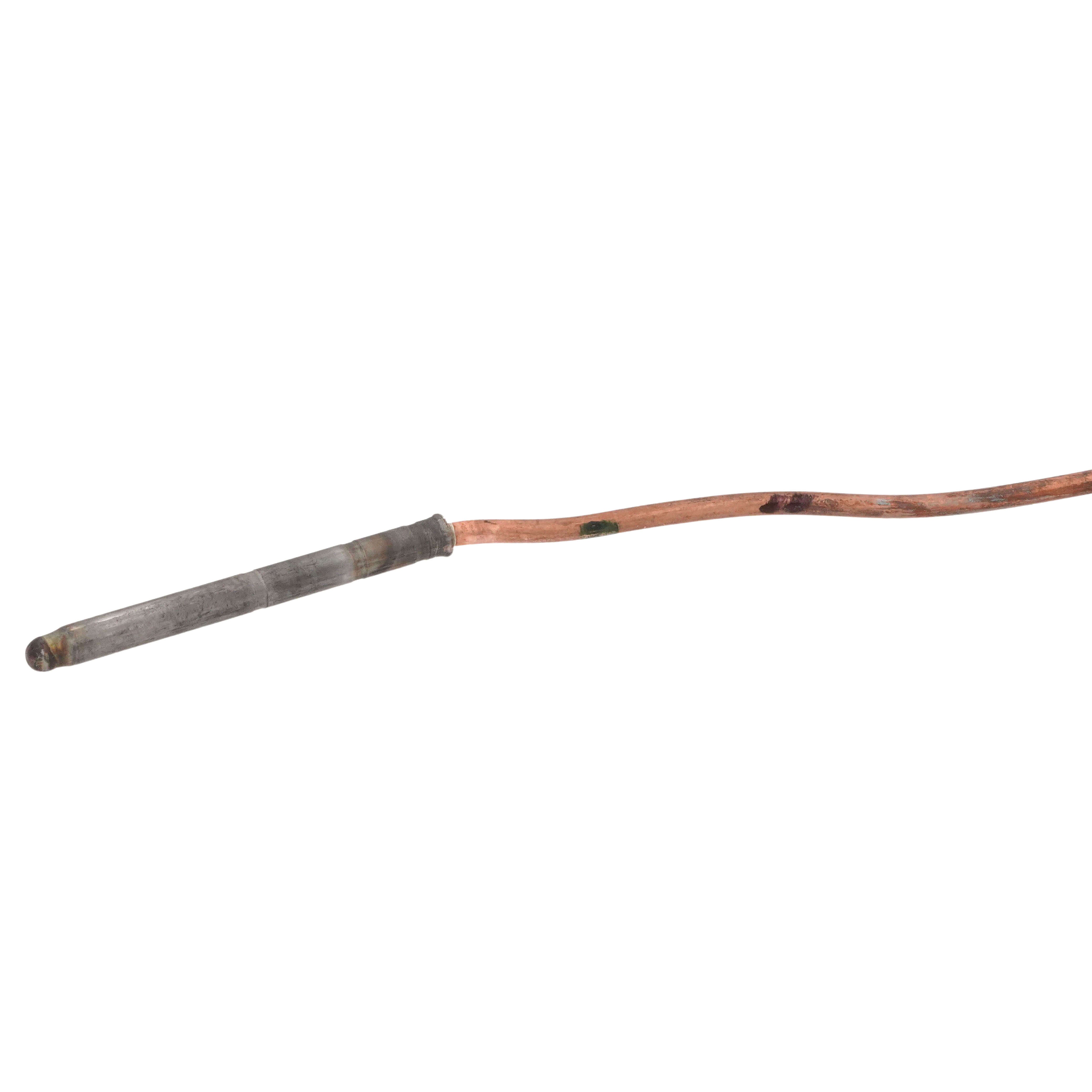

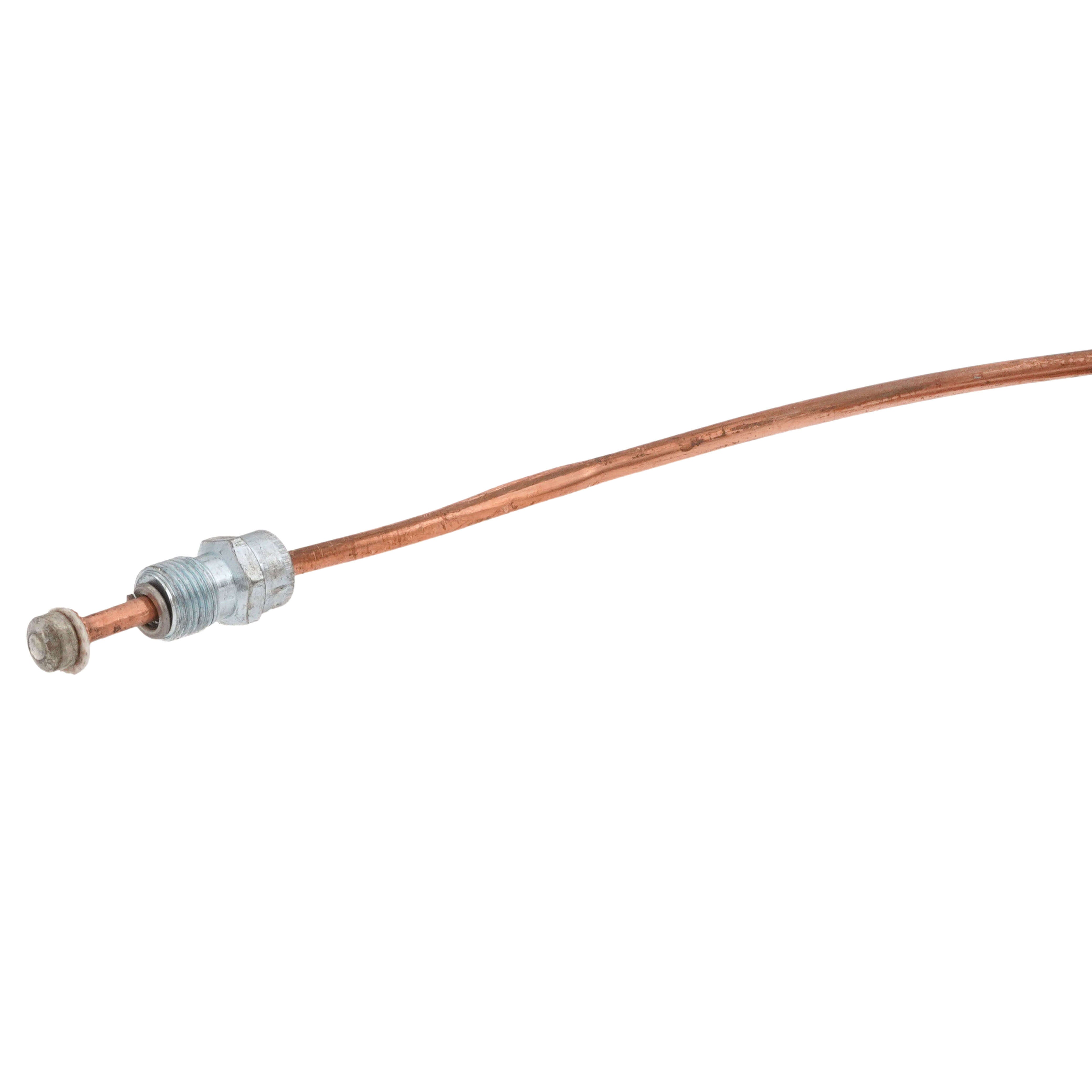

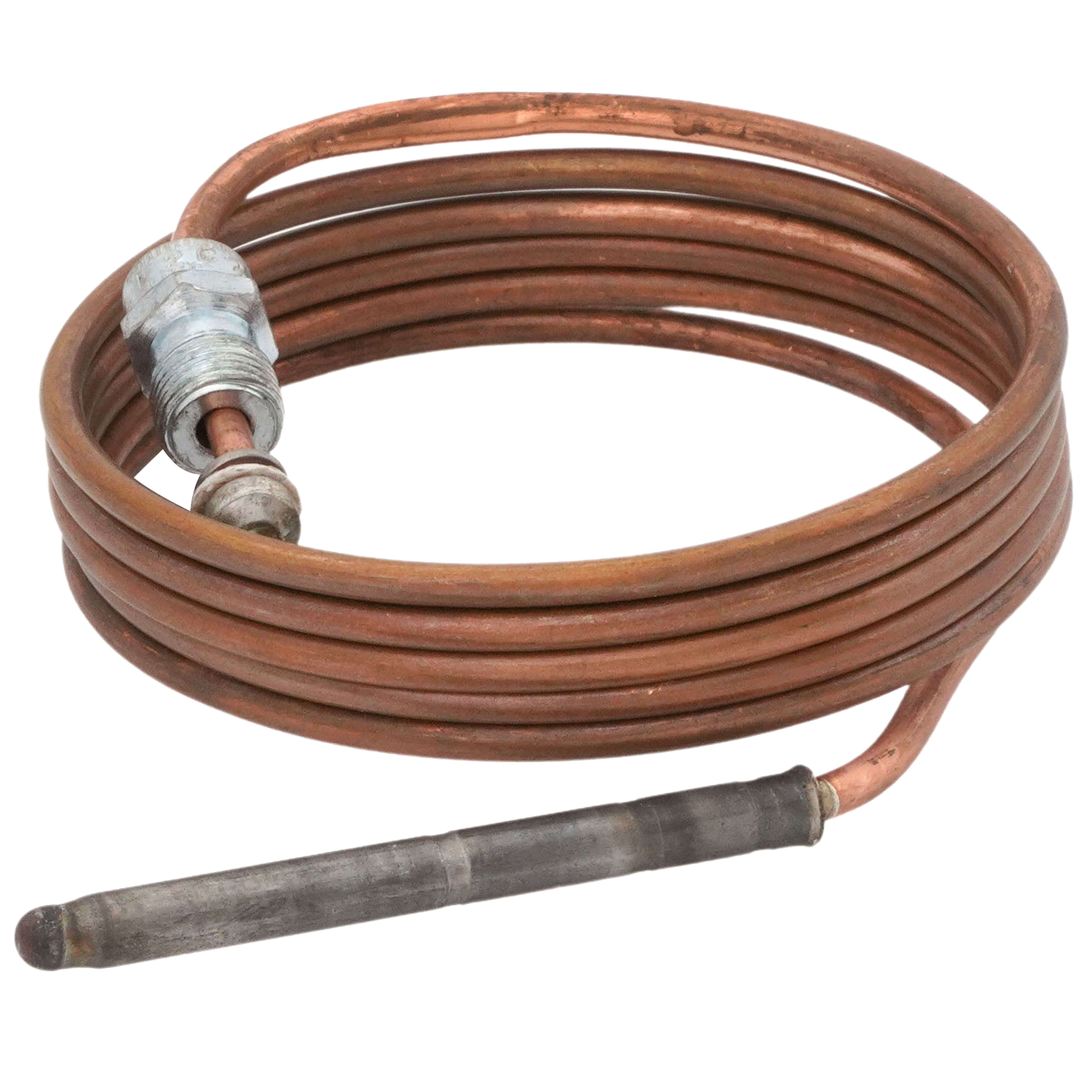

Robertshaw 1980-048 Thermocouple 48 inches

Product Description

The Robertshaw 1980-048 is a 48" thermocouple designed for easy installation into most pilot burners. Constructed without complicated adaptors, it features extra insulation from high ambient temperatures provided by the brass sheath. It is made of the same materials as used in the 1970 series.

• Easy installation
• Slim and standard thermocouple types available
• Extra insulation from high ambient temperatures

Product Highlights

This Robertshaw thermocouple offers easy installation and reliable performance in high-temperature environments, ensuring compatibility with various pilot burner systems.

Product Information

Standard Information

• Brand: ROBERTSHAW
• Manufacturer Part Number: 1980-048
• Country of Origin: United States

Technical Specifications

• Length (Inches): 48"
• Series Application: 1980 Snap-Fit Thermocouple
• Lead Length: 48" (120cm)
• Type [Specifications]: Snap-Fit
• Voltage [Specifications]: 18 to 30 mV
• Gas Type [Specifications]: LP/NG

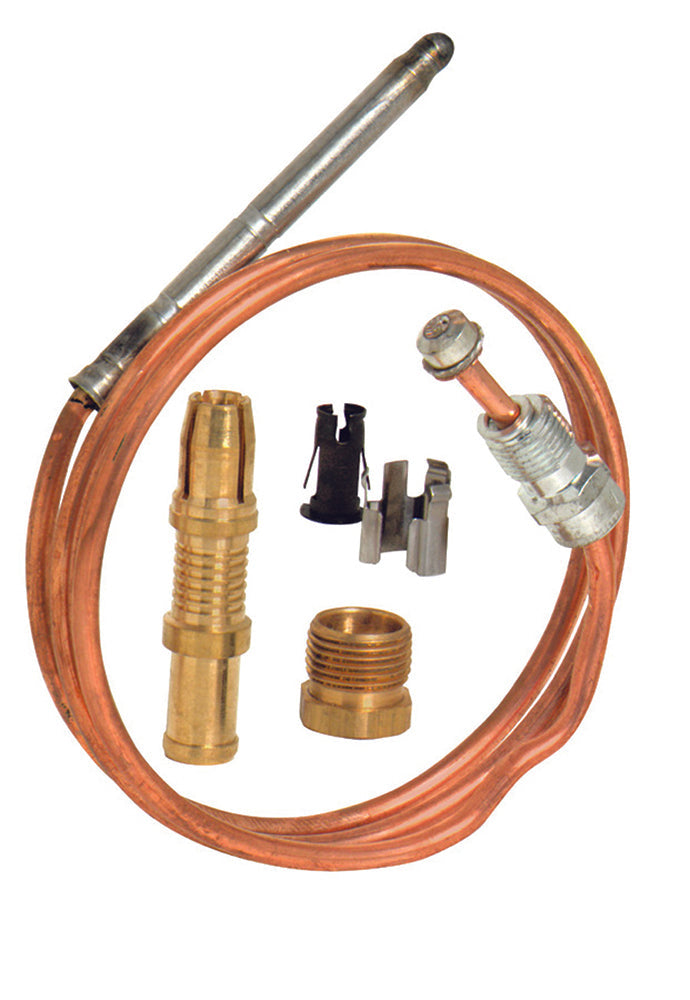

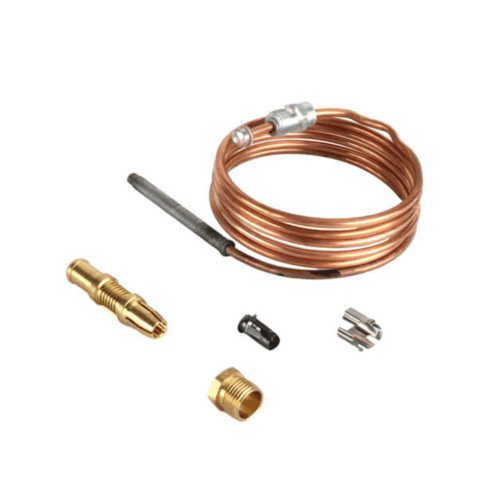

• Includes [Specifications]: Fittings and Adapters
• Tip Style [Specifications]: Snap-Fit Stainless Steel
• Length (In.) [Specifications]: 48 in
• Product Type [Specifications]: Replacement Thermocouple
• Package Quantity [Specifications]: 1
• Special Information [Specifications]: Snap-Fit Style Easily Adjustable To Virtually All Installations
• Series: 1980 Series
• Connection Type: Male
• Open Circuit Output: 25 to 30 mV
• Material: Stainless Steel
• Lead Wire Length: 48"
