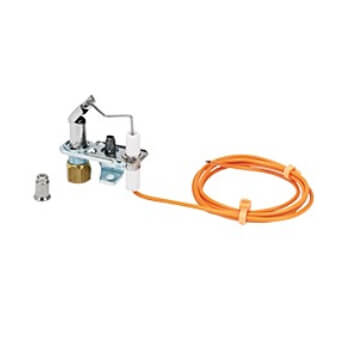

Robertshaw 1830-726 36 Pilot Electrode Assembly w/ Standard Left Flame 2S-2ER

Product Description

The Robertshaw 1830-726 is a 36 Pilot Electrode Assembly designed for OEM-style Pilot Ignition systems. The electrode is securely riveted to the pilot frame, and the spark gap is fixed at one eighth inch. This product serves as a direct replacement for existing pilot assemblies and is also ideal for retrofitting standing pilot applications.

• Includes natural gas orifice and a separate L.P. gas orifice
• Compatible with various flame patterns
• Available thermocouple or thermopile options

Product Highlights

The assembly features aerated pilots and several mounting bracket types, making it versatile for different installations.

Product Information

Standard Information

• Brand: Robertshaw
• MPN: 1830-726

Technical Specifications

• Flame Pattern: Standard
• Weight: 0.175 pounds
• Shipping Dimensions: 4 inches depth, 2.5 inches width, 2 inches height
• Pilot Tubing Size: 1/4 inch
• Gas Inlet Orientation: Horizontal or vertical
• Material: Designed for use with natural gas or L.P. gas
