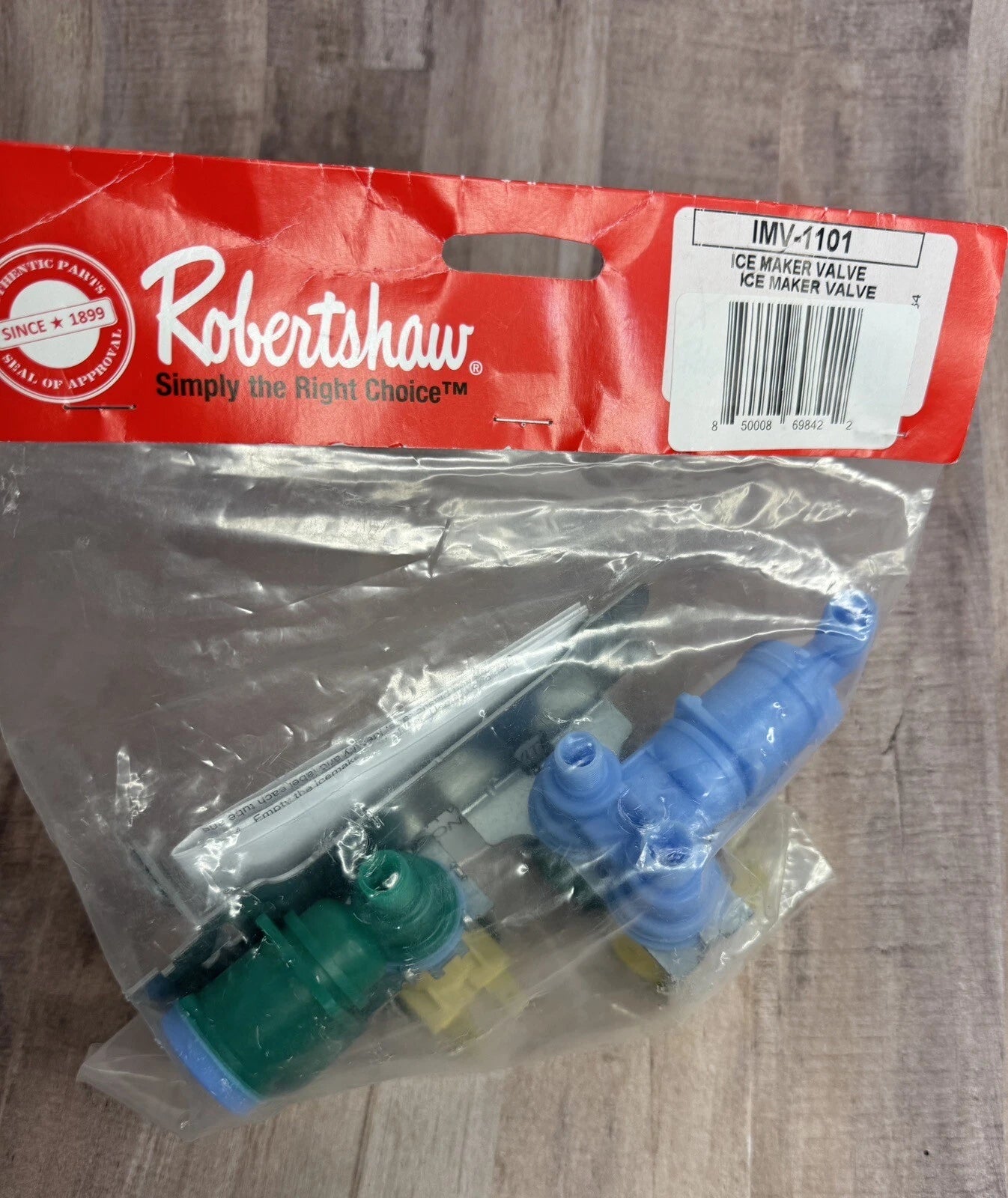

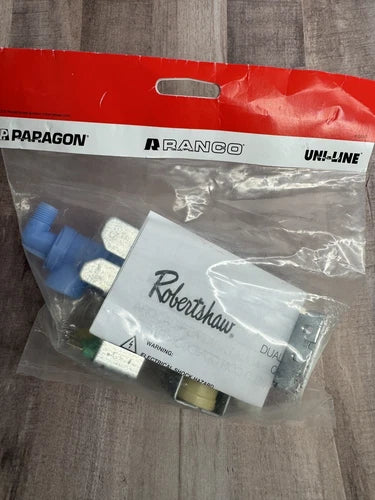

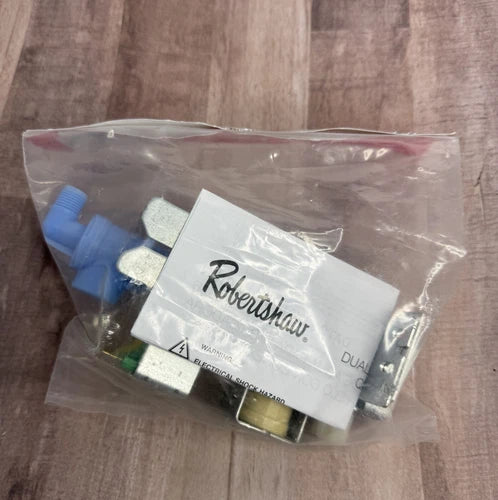

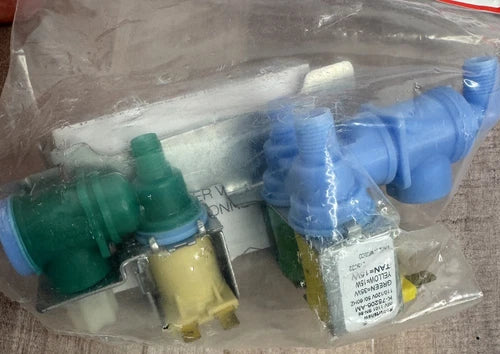

Robertshaw 1101 Ice Maker Dual Water Valve

Product Description

The Robertshaw 1101 is a dual water valve designed for ice maker applications. This valve features a direct-acting armature that maximizes flow capacity while consuming less power. The encapsulated coil provides strong resistance against moisture, which enhances its durability.

• Direct acting armature for high flow capacity.
• Encapsulated coil offers moisture resistance.
• Designed to operate with water temperatures up to 160 degrees Fahrenheit.

Product Highlights

This valve’s construction with polypro bodies enhances its corrosion resistance. The armature and seat design is engineered to limit particle entry and reduce jamming. The Robertshaw 1101 operates effectively under varying pressures, making it ideal for residential ice machine needs.

Product Information

Standard Information

• Item Number: IMV-1101
• Power Source: Electric

Technical Specifications

• Operating Pressure: 20 PSI - 120 PSI
• Electrical Rating: 120V AC 60Hz
• Flow Rate: 140 CC in 7.5 sec, 180-600 CC in 7.5 sec
• Material: ABS Plastic
• Inlet Size: 7/16 20 UNS
• Outlet: 7/16 20 UNF, 1/2 20 UNF
• Body Material: Polypro
• Model: Robertshaw IMV-1101
