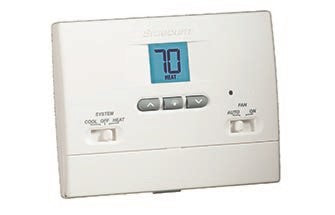

Robertshaw 1000NC Braeburn 24V/Millivolt Single Thermostat

Product Description

The Robertshaw 1000NC Braeburn thermostat is suitable for both 24V and millivolt heating systems. This device is designed for residential use. It allows for precise temperature management and includes adjustable temperature limits. The thermostat is easy to install and operate. It can operate on battery power or through a fixed connection. A front access reset button is also included for convenience.

• Compatible with 24V and millivolt systems
• Includes adjustable temperature limits
• Features a front access reset button

Product Highlights

The Robertshaw 1000NC is ideal for anyone needing a reliable thermostat for home heating.

Product Information

Standard Information

• Brand: ROBERTSHAW
• Application: 1 heat / 1 cold heat pump or conventional, electric, gas, oil or millivolt, 2-wire hydronic systems

Technical Specifications

• Electrical classification: 24V AC with battery backup OR 3V DC battery powered, max load 1 Amp. per terminal, max load 3 Amp. (all terminals together)
• Temperature range: 45°F to 90°F (7°C to 32°C) +/- 1°F (+/- 0.5°C)
• Terminations: Rc, Rh, B, O, Y, G, C
• Size: 3.72 inches x 4.75 inches x 1.12 inches (9.44cm x 12.06cm x 2.84cm)
• Weight: 1.0 lbs
