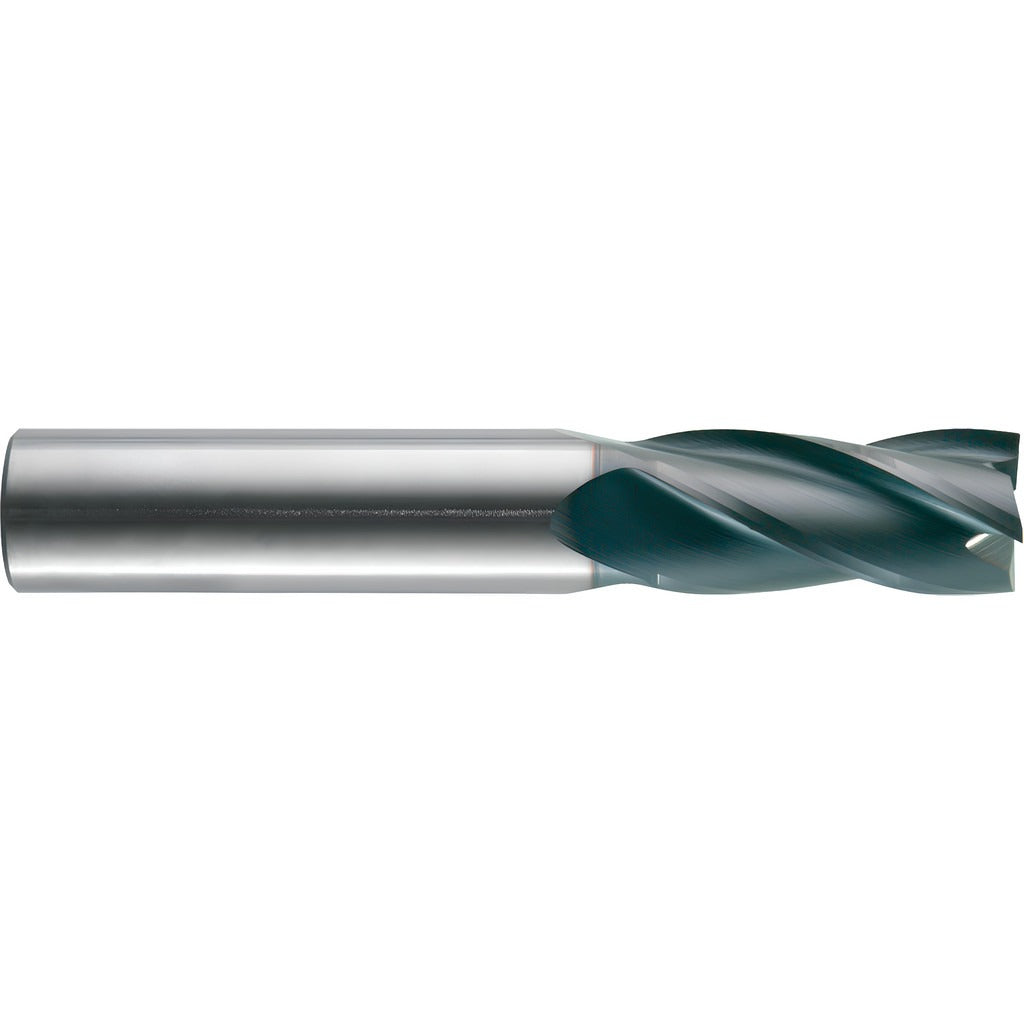

Robbjack ST-434-16-C Corner Chamfer End Mill 1/2 in 4 Flute

Product Description

The ROBBJACK ST-434-16-C is a single-end corner chamfer end mill ground from solid carbide and coated with TiCN via a PVD process. It carries a 0.5 inch cutting diameter, a 1 inch length of cut, and a 45-degree chamfer angle with a chamfer width of 0.0060 inch. Four right-hand helical flutes at a 30-degree medium helix angle deliver efficient chip evacuation during both roughing and finishing passes. The 0.5 inch straight-cylindrical shank fits standard collet and end mill holders. Overall length is 3 inches. Licensed machinists and CNC operators working in job shop, production, and toolroom environments are the primary users of this tool.

The ST-434-16-C is suited for side milling, edge chamfering, and corner-break operations on steel, stainless steel, cast iron, superalloys, and titanium. The TiCN coating improves wear resistance and surface hardness, extending tool life in abrasive and high-temperature cutting conditions. It is appropriate for use on vertical machining centers, horizontal machining centers, and manual mills where a consistent 45-degree corner chamfer is required on ferrous and exotic-alloy workpieces.

Key Features

• Solid carbide construction for rigidity and heat resistance in demanding cuts
• TiCN PVD coating increases surface hardness and reduces built-up edge on steel and stainless steel
• 45-degree chamfer angle with 0.0060 inch chamfer width for precise edge-break geometry
• 4 right-hand flutes at 30-degree medium helix for balanced chip flow in roughing and finishing
• Single-end design with straight-cylindrical shank for direct collet or end mill holder mounting
• Compatible with steel, stainless steel, cast iron, superalloys, and titanium workpiece materials

Compatibility

Designed for cutting steel, stainless steel, cast iron, superalloys, and titanium as stated by the manufacturer. Part of the ROBBJACK ST-434 series. Fits any standard 1/2 inch collet or end mill holder on vertical or horizontal machining centers.

Installation Notes

Installation and operation should be performed by qualified machinists or CNC operators familiar with end mill tooling. Verify spindle runout and holder concentricity before securing the shank; excessive runout accelerates wear and can cause premature tool failure. Follow machine tool manufacturer guidelines for speed and feed parameters appropriate to workpiece material and depth of cut. Ensure the machine spindle is fully stopped and locked out before changing or inspecting the tool.
