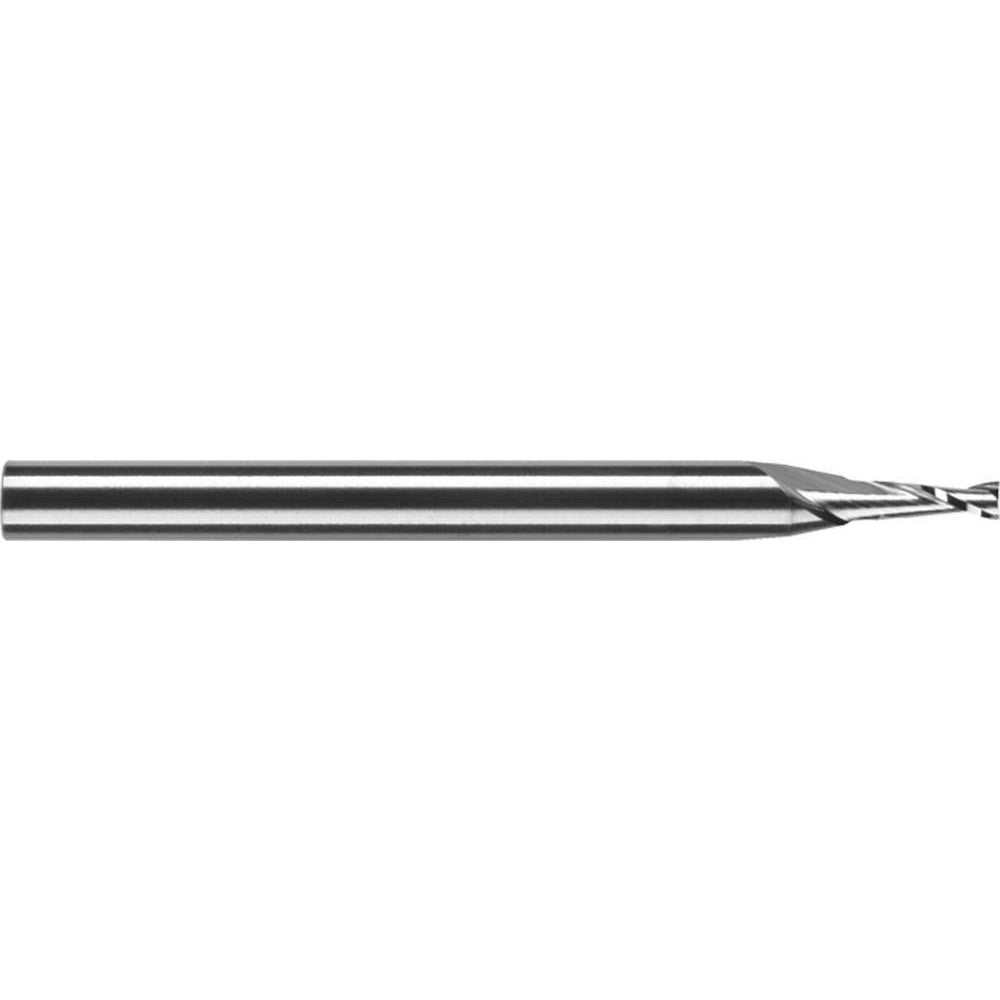

Robbjack SR-2-048 Square End Mill 0.048 in 2 Flute Carbide

Product Description

The ROBBJACK SR-2-048 is a solid carbide square end mill designed for precision milling in tight-tolerance applications. Part of the SR-2 Series, this 2-flute tool carries a 0.048-inch cutting diameter with a 0.144-inch length of cut and a 1/8-inch straight cylindrical shank. At 1.5 inches overall length, it fits standard toolholders used in CNC machining centers and manual mills. The Tuffy material grade carbide substrate delivers the hardness and wear resistance needed for cutting ferrous and non-ferrous materials at small diameters. Uncoated and centercutting, it supports both plunge and conventional milling operations.

This end mill is suited for small-feature milling work including slots, pockets, and profiling passes where dimensional accuracy is critical. Its right-hand cut and right-hand spiral flute geometry are standard for conventional CNC milling setups. The 30-degree helix angle promotes smooth chip evacuation and reduces cutting forces at the small diameter, making it appropriate for use in precision machining of molds, dies, medical components, and aerospace parts. Machinists and CNC operators in job shops and production environments are the primary users of this tool.

Key Features

• 0.048-inch cutting diameter with tight mill diameter tolerance of plus 0.0005 / minus 0.0005 inches
• Solid carbide Tuffy material grade for hardness and wear resistance at small diameters
• 2-flute spiral configuration with 30-degree helix angle for efficient chip evacuation
• Centercutting design allows direct plunge entry into workpiece material
• Right-hand cut and right-hand flute geometry compatible with standard CNC milling spindles
• Uncoated finish suitable for use with cutting fluids on a wide range of materials

Compatibility

Designed as an OEM-style tooling solution for CNC machining centers and manual mills accepting a 1/8-inch straight cylindrical shank. Part of the ROBBJACK SR-2 Series regular-length square end mill lineup.

Installation Notes

Installation should be performed by a qualified machinist or CNC operator. Ensure the spindle is fully stopped and the machine is in a safe state before loading or changing tooling. Use a properly sized collet or toolholder rated for a 1/8-inch shank and torque the retention mechanism per the toolholder manufacturer specifications. At this diameter, runout control is critical - verify tool runout with a dial indicator before beginning a cut to avoid premature tool breakage.
