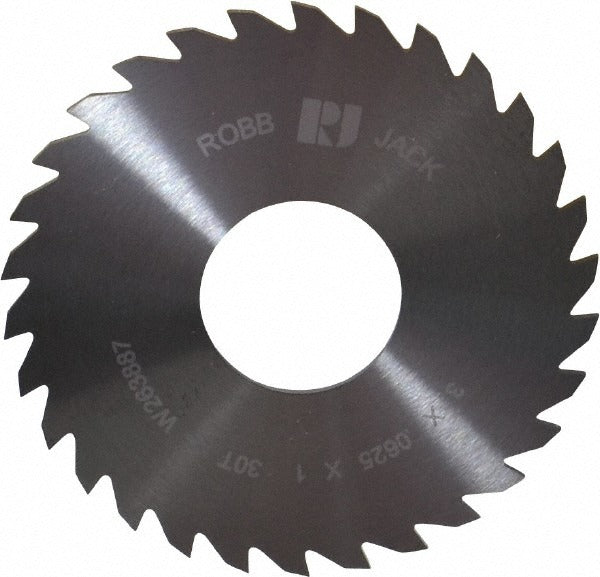

Robbjack C30-0625-32-30 Slitting Saw 3 in 30T Carbide

Product Description

The ROBBJACK C30-0625-32-30 is a solid carbide slitting and slotting saw designed for precision cutting in metalworking and machining applications. It measures 3 inches in diameter with a blade thickness of 0.0625 inches (1/16 inch) and accepts a 1-inch arbor. The saw features 30 straight teeth with a 10-degree rake angle and a concave ground face for reduced friction and improved chip clearance. The bright, uncoated finish is standard for this Series C tool. Right-hand cutting direction is standard. This tool is installed and operated by machinists and toolroom professionals on milling machines and horizontal arbor setups.

This slitting saw is suited for slotting, parting, and narrow-width cutting operations on a range of non-ferrous and engineered materials. Its solid carbide construction supports use in production and precision machining environments where dimensional accuracy and tool rigidity are required. The 1-inch arbor hole accommodates standard milling machine arbors commonly found in job shops and manufacturing facilities.

Key Features

• Solid carbide construction for rigidity and wear resistance in precision cutting
• 3-inch blade diameter with 0.0625-inch (1/16 inch) thickness for narrow slot applications
• 30 straight teeth with a 10-degree rake angle for clean, controlled cuts
• Concave ground face reduces blade friction during through-cuts
• Bright, uncoated finish suitable for non-ferrous materials and plastics
• Right-hand cutting direction; fits 1-inch arbor hole

Compatibility

Compatible with aluminum, brass, composites, copper, magnesium, and plastics. Designed for use on milling machines equipped with a 1-inch arbor.

Installation Notes

Installation is performed by machinists on milling machines using a standard arbor and appropriate spacers and collars to secure the blade. Ensure the machine spindle is fully powered down and locked out before mounting or removing the saw. Confirm arbor diameter, blade bore, and spacer stack are properly aligned before torquing the arbor nut. Follow the machine manufacturer guidelines and applicable shop safety codes when selecting feeds, speeds, and coolant for the material being cut.
