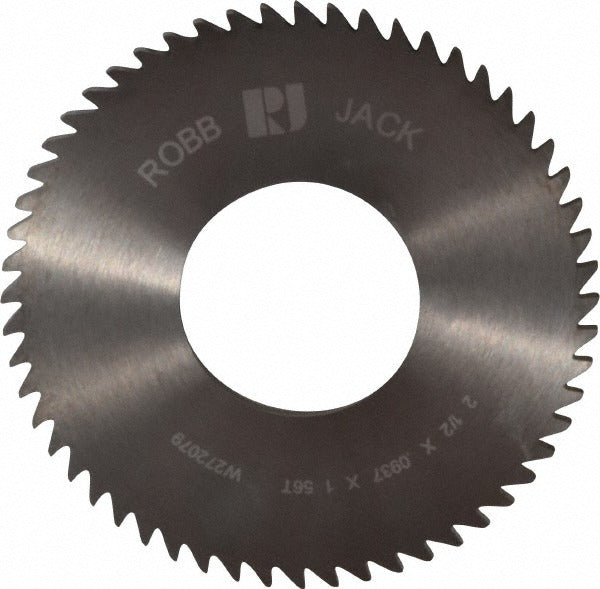

Robbjack C25-0937-32-56 Slitting Slotting Saw 56T

Product Description

The ROBBJACK C25-0937-32-56 is a solid carbide slitting and slotting saw designed for precision cutting operations in metalworking environments. The blade measures 2.5 inches in diameter and 0.0937 inches thick, with a 1-inch arbor hole for secure chuck or arbor mounting. At 56 teeth with a straight tooth configuration and a 5-degree rake angle, this saw delivers clean, repeatable cuts in demanding materials. The concave-ground face reduces friction and helps maintain dimensional accuracy across the cut. Right-hand cutting direction suits standard spindle rotation on most milling machines and arbor setups.

This saw is intended for use on vertical or horizontal milling machines in production and job-shop machining applications. It is suited for slitting, slotting, and parting operations in cast iron, steel, stainless steel, titanium, and super alloys. The solid carbide construction makes it appropriate for shops running higher spindle speeds or cutting harder workpiece materials where high-speed steel tooling would wear prematurely. Machinists and toolroom professionals are the primary installers and operators.

Key Features

• Solid carbide construction for extended tool life in ferrous and exotic alloys
• 2.5-inch blade diameter with 0.0937-inch blade thickness for narrow-kerf slitting
• 56 straight teeth provide smooth, consistent chip load per tooth
• 5-degree rake angle optimized for cutting cast iron, stainless steel, steel, titanium, and super alloys
• Concave-ground face reduces side friction and supports accurate slot depth
• Bright/uncoated finish compatible with standard coolant and cutting oil applications
• Right-hand cutting direction matches standard milling machine spindle rotation

Compatibility

Designed for use on milling machines with a 1-inch arbor. Rated for material applications including cast iron, stainless steel, steel, super alloys, and titanium.

Installation Notes

Installation is performed by a machinist or toolroom technician. The saw must be mounted on a clean, properly sized arbor with appropriate spacers and a draw bolt torqued per the machine manufacturer's specifications. Ensure the machine spindle is fully stopped and locked out before mounting or removing the saw. Always verify arbor hole fit and blade concentricity before beginning a cut, and confirm coolant or cutting oil flow is established prior to engaging the workpiece.
