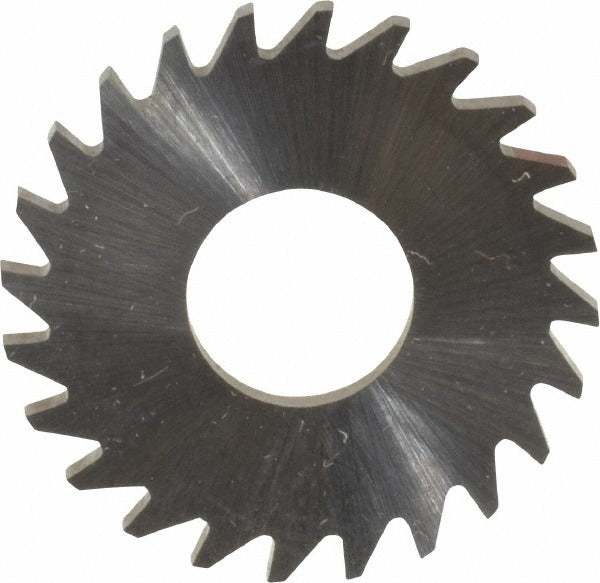

Robbjack C10-0625-12-24 Slitting Slotting Saw Solid Carbide

Product Description

The ROBBJACK C10-0625-12-24 is a solid carbide slitting and slotting saw designed for precision cutting in demanding machining applications. It measures 1 inch in diameter with a blade thickness of 0.0625 inches (1/16 inch) and features 24 straight teeth with a 5-degree rake angle. The bright, uncoated finish leaves the carbide surface exposed for maximum edge visibility and easy inspection. Concave-ground tooth geometry reduces blade friction in the cut and helps clear chips efficiently. This saw is intended for machinists and toolroom operators working on milling machines or machining centers requiring accurate, thin-kerf slot or slit cuts.

This saw is suited for slitting and slotting operations in a range of ferrous and high-performance materials. It is rated for use in cast iron, stainless steel, steel, super alloys, and titanium. The arbor-mount connection type makes it compatible with standard slitting saw arbors used on vertical mills and horizontal machining centers. Applications include narrow slot cutting, parting operations, and precision slitting in production or toolroom environments where a thin carbide blade is required to hold tight tolerances.

Key Features

• Solid carbide construction provides rigidity and wear resistance in hard and abrasive materials
• 24 straight teeth deliver consistent chip load at standard milling feeds
• 5-degree rake angle optimized for controlled cutting in steel, stainless steel, and superalloys
• Concave-ground blade face reduces rubbing and lateral friction during slotting passes
• Bright, uncoated finish maintains sharp carbide edge geometry right out of the package
• Right-hand cutting direction for standard spindle rotation on conventional milling equipment

Compatibility

Designed for use with standard arbor-mount slitting saw holders on vertical mills and horizontal machining centers. Rated for cast iron, stainless steel, steel, super alloys, and titanium workpiece materials as specified by the manufacturer.

Installation Notes

Installation should be performed by a qualified machinist familiar with rotating cutting tool safety. Power down and lock out the machine before mounting or removing the saw from the arbor. Ensure the arbor, spacers, and drawbar are clean and properly torqued according to the machine tool manufacturer's specifications before operation. Never exceed the recommended surface footage for the workpiece material, and inspect the blade for chipping or cracking before each use.
