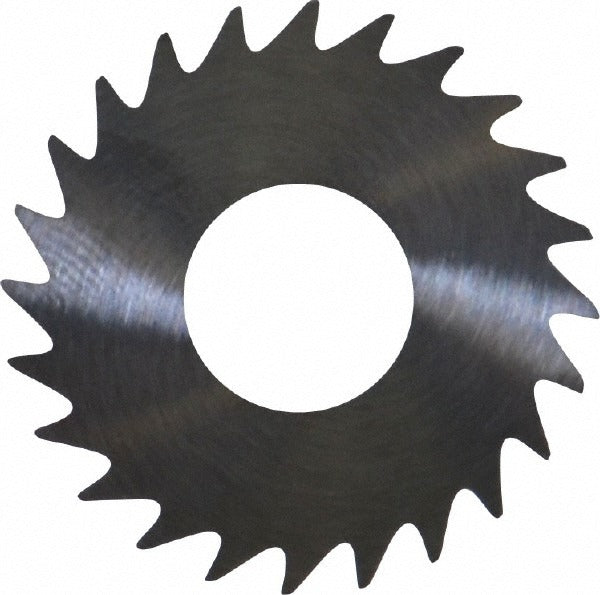

Robbjack C10-0510-12-24 Slitting Slotting Saw Solid Carbide

Product Description

The ROBBJACK C10-0510-12-24 is a solid carbide slitting and slotting saw designed for precision slot cutting, parting, and slitting operations on a wide range of industrial materials. The blade measures 1 inch in diameter and 0.051 inches thick, with 24 straight teeth and a 5-degree rake angle. The concave-ground blade geometry reduces side friction during the cut and supports tight-tolerance slotting. The bright, uncoated finish suits applications where coating buildup or heat sensitivity is a concern. This saw is mounted via arbor connection and is intended for use by machinists and toolroom operators working on manual or CNC milling machines.

This saw is suited for slitting and slotting operations in ferrous and high-performance materials including cast iron, stainless steel, carbon steel, super alloys, and titanium. The solid carbide construction provides the rigidity and wear resistance needed when cutting harder workpiece materials where high-speed steel tooling would deflect or wear prematurely. Typical applications include narrow slot cutting, parting-off operations, and keyway or groove work where a thin, precise blade is required. The right-hand cutting direction is standard for conventional milling setups.

Key Features

• Solid carbide construction for rigidity and wear resistance in hard-material applications
• 1 inch blade diameter with 0.051 inch thickness for narrow, precise slotting
• 24 straight teeth with a 5-degree rake angle for clean, controlled cuts
• Concave-ground blade reduces side-wall friction and minimizes heat buildup
• Bright, uncoated finish compatible with a wide range of cutting fluids and materials
• Arbor connection, right-hand cutting direction, Series C design

Compatibility

Designed for arbor-mount milling machines and compatible with standard slitting saw arbors accepting a 1 inch diameter blade. Rated for use in cast iron, stainless steel, steel, super alloys, and titanium workpiece materials.

Installation Notes

Installation should be performed by a qualified machinist. Ensure the milling machine spindle is fully powered down and the arbor is clean and free of debris before mounting the blade. Torque the arbor nut to the machine and tooling manufacturer specifications. Confirm correct arbor diameter, spacer stack, and blade seating before initiating any cut. Use appropriate cutting fluid for the workpiece material.
