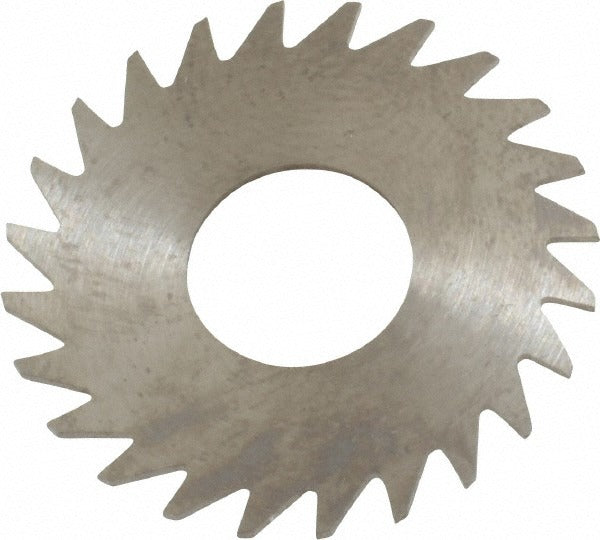

Robbjack C10-0250-12-24 Slitting Slotting Saw Solid Carbide

Product Description

The ROBBJACK C10-0250-12-24 is a solid carbide slitting and slotting saw designed for precision cutting in metalworking operations. Built to Series C specifications, this saw measures 1 inch in diameter with a blade thickness of 0.025 inches and carries 24 straight teeth with a 5-degree rake angle. The concave-ground tooth profile reduces blade drag and helps clear chips during cuts. Intended for use on milling machines and machining centers, it is installed via an arbor connection and is suited for machinists and tool-and-die professionals working in production or job-shop environments.

This saw is rated for cutting cast iron, stainless steel, carbon steel, super alloys, and titanium, making it a capable choice across a range of demanding material applications. The bright uncoated finish is standard for solid carbide tooling where coating interaction with certain materials may be a concern or where re-sharpening is anticipated. Right-hand cutting direction suits conventional milling setups. Typical use cases include slotting, slitting, and undercutting operations where a thin kerf and tight dimensional control are required.

Key Features

• Solid carbide construction for rigidity and wear resistance in hard and abrasive materials
• 1 inch blade diameter with 0.025 inch thickness for thin-kerf slitting and slotting
• 24 straight teeth with a 5-degree rake angle for clean chip formation
• Concave-ground blade profile reduces friction and aids chip evacuation
• Bright uncoated finish compatible with a wide range of metallic workpiece materials
• Right-hand cutting direction for use on standard milling machine spindles

Compatibility

Designed for arbor-mount milling machine setups. Compatible material applications include cast iron, stainless steel, steel, super alloys, and titanium per manufacturer specifications.

Installation Notes

Installation is performed by a machinist using a standard slitting saw arbor sized to match the saw bore. Ensure the milling machine spindle is fully powered down and locked out before mounting or removing the saw. Verify arbor nut torque and blade seating before initiating a cut. Handle solid carbide tooling with care to avoid chipping the cutting edges during setup.
