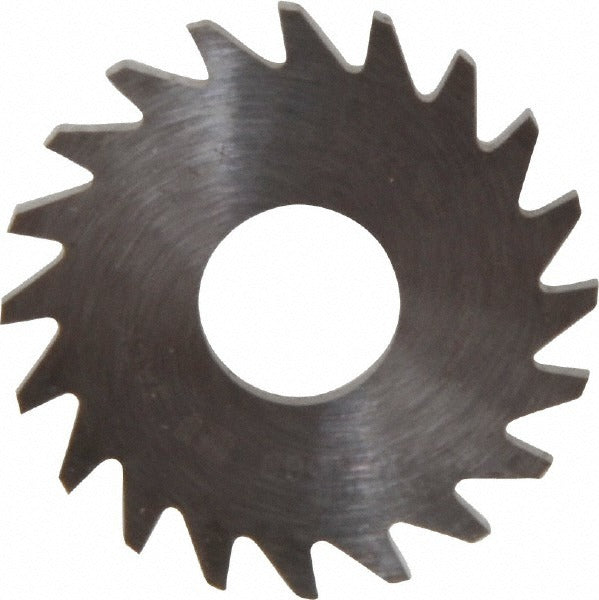

Robbjack C07-0625-08-20 Slitting Slotting Saw Solid Carbide

Product Description

The ROBBJACK C07-0625-08-20 is a solid carbide slitting and slotting saw designed for precision cutting in metalworking and machining applications. It measures 3/4 inches in diameter and 1/16 inches thick, with 20 straight teeth and a 5-degree rake angle. The bright/uncoated finish and concave-ground blade profile support accurate, repeatable slot and groove cutting. This saw mounts via arbor and is sized for use in vertical mills, horizontal mills, and CNC machining centers. Machinists and toolroom professionals install this type of cutter for slitting operations that demand close tolerances and clean sidewall finish.

This saw is suited for slitting, slotting, and groove-cutting operations across a range of ferrous and high-performance alloys. Its solid carbide construction supports use in harder materials where high-speed steel tooling falls short. Typical applications include slot cutting in production runs and toolroom work on cast iron, stainless steel, steel, super alloys, and titanium. The right-hand cutting direction is standard for conventional mill setups.

Key Features

• Solid carbide construction for rigidity and wear resistance in hard metals
• 20 straight teeth with a 5-degree rake angle for controlled chip removal
• Concave-ground blade for reduced side friction and improved slot finish
• Bright/uncoated finish compatible with a wide range of cutting fluids and coolants
• Right-hand cutting direction for standard mill spindle rotation
• Arbor-mount connection for use with standard slitting saw arbors

Compatibility

Designed for arbor-mount slitting saw applications in vertical mills, horizontal mills, and CNC machining centers. Rated for cutting cast iron, stainless steel, steel, super alloys, and titanium per Series C specifications.

Installation Notes

Installation is performed by qualified machinists or toolroom technicians. Secure the saw firmly to the arbor and verify runout before cutting. Power down and lock out the spindle before mounting or removing the cutter. Use appropriate cutting fluid for the workpiece material, and never exceed the recommended surface footage for carbide tooling in the material being cut.
