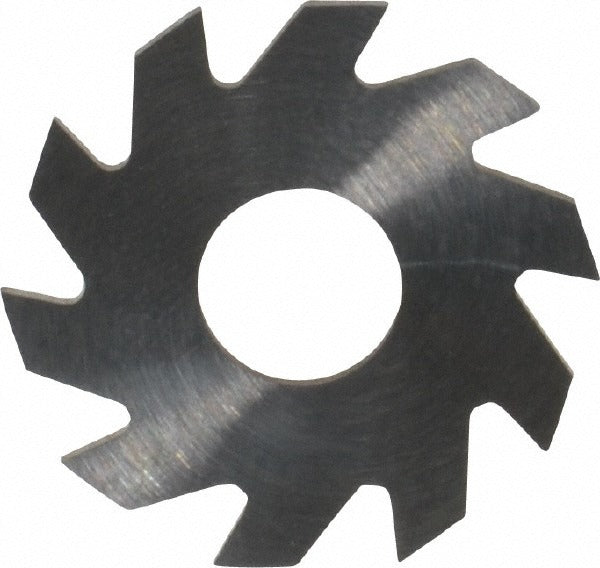

Robbjack C07-0400-08-10 Slitting Slotting Saw

Product Description

The ROBBJACK C07-0400-08-10 is a solid carbide slitting and slotting saw designed for precision cutting in metalworking and fabrication applications. With a 0.75-inch blade diameter and a 0.04-inch blade thickness, this saw is built for narrow kerf slotting, parting, and undercutting operations. It features 10 straight teeth with a 10-degree rake angle and a concave-ground face, which helps reduce friction and improves chip clearance during cuts. The bright, uncoated finish is standard for general-purpose solid carbide tooling. Right-hand cutting direction makes it compatible with conventional milling machine spindle rotation. Machinists and tooling professionals install and run this saw on arbor-mount setups in production and job shop environments.

This slitting saw is suited for use on CNC machining centers and manual milling machines where tight-tolerance slotting or parting operations are required. It performs well on non-ferrous and softer workpiece materials, making it a practical choice for shops working across a range of material types. Its solid carbide construction offers rigidity and wear resistance appropriate for fine, precise cuts at higher spindle speeds.

Key Features

• Solid carbide construction for rigidity and extended tool life in precision slotting operations
• 0.04-inch blade thickness enables narrow kerf cuts with minimal material loss
• 10 straight teeth with a 10-degree rake angle for clean, efficient chip removal
• Concave-ground blade face reduces rubbing and heat buildup during cuts
• Right-hand cutting direction for use with standard milling machine spindle rotation
• Bright/uncoated finish suitable for non-ferrous materials and general-purpose applications
• Arbor connection type for secure, repeatable mounting on standard slitting saw arbors

Compatibility

Designed for use on standard milling machine arbors. Compatible material applications include aluminum, brass, composites, copper, magnesium, and plastics as specified by the manufacturer.

Installation Notes

Installation and operation of slitting saws should be performed by qualified machinists familiar with milling machine setup and tooling practices. Power down and lock out the machine before mounting or removing the saw from the arbor. Ensure the arbor, spacers, and clamping hardware are clean and properly torqued before running the spindle. Always verify spindle speed and feed rate are appropriate for the workpiece material and blade diameter before beginning the cut.
