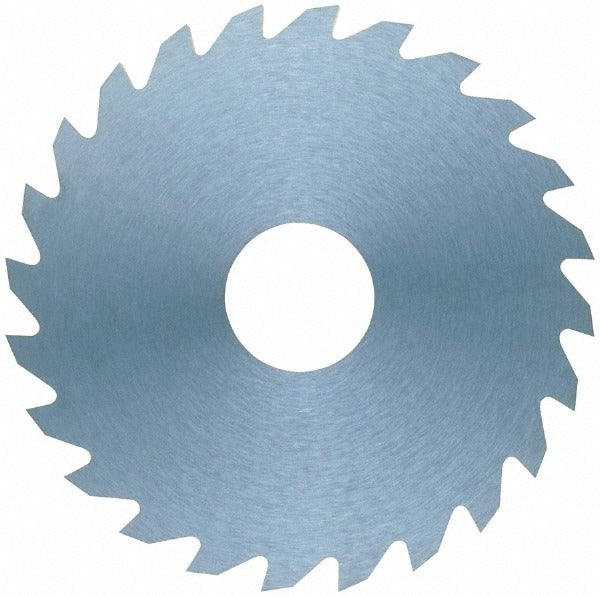

Robbjack C07-0250-08-10 Slitting Slotting Saw 10T Carbide

Product Description

The ROBBJACK C07-0250-08-10 is a solid carbide slitting and slotting saw designed for precision cutting operations on non-ferrous and soft materials. With a blade diameter of 0.75 inches and a blade thickness of 0.025 inches, this saw produces narrow, accurate slots and kerfs in a compact cutting profile. The 10-tooth straight configuration with a 10-degree rake angle and concave-ground face promotes clean chip evacuation and consistent cut quality. The bright uncoated finish makes it well suited for materials where coating adhesion or heat buildup is a concern. Machinists and tool-and-die professionals use this saw on CNC mills and manual knee mills via a standard arbor connection.

This saw is rated for cutting aluminum, brass, copper, magnesium, composites, and plastics. It belongs to ROBBJACK Series C and is a right-hand cutting tool. Typical applications include slotting shaft keyways, cutting O-ring grooves, parting thin stock, and producing narrow slots in non-ferrous workpieces. The solid carbide construction handles the rigidity demands of fine-pitch slotting work where high-speed steel tooling deflects or wears prematurely.

Key Features

• Solid carbide construction for rigidity and wear resistance in non-ferrous slotting applications
• 0.025 inches blade thickness for narrow slot and kerf work
• 10-tooth straight configuration with 10-degree rake angle for clean chip flow
• Concave-ground face reduces friction and improves cut accuracy
• Bright uncoated finish suitable for aluminum, copper, brass, and plastics
• Right-hand cutting, arbor-mount connection compatible with standard slitting saw arbors

Compatibility

Designed for use with standard slitting saw arbors on CNC machining centers and manual milling machines. Rated material applications include aluminum, brass, composites, copper, magnesium, and plastics per manufacturer specifications.

Installation Notes

Installation is performed by qualified machinists. Ensure the milling machine spindle is fully stopped and locked out before mounting or removing the saw blade from the arbor. Secure the arbor nut to manufacturer-recommended practice using the appropriate arbor wrench - do not use impact tools on arbor hardware. Verify blade runout with a dial indicator before beginning a cut, as excessive runout on a thin blade will cause premature edge chipping.
