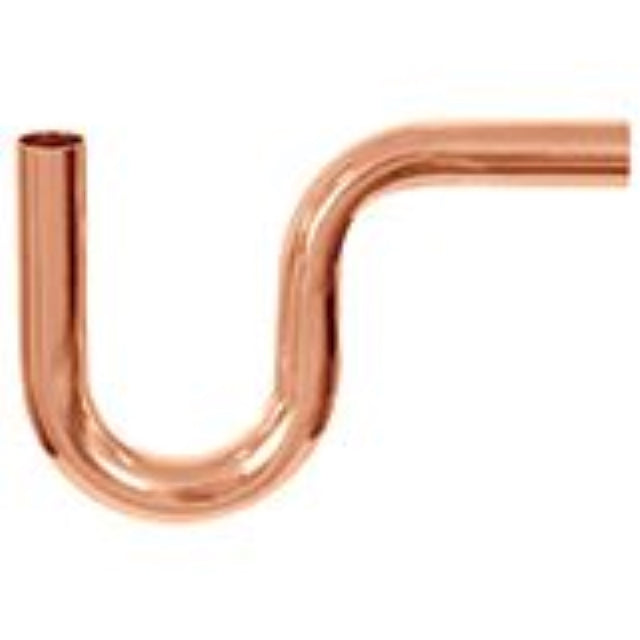

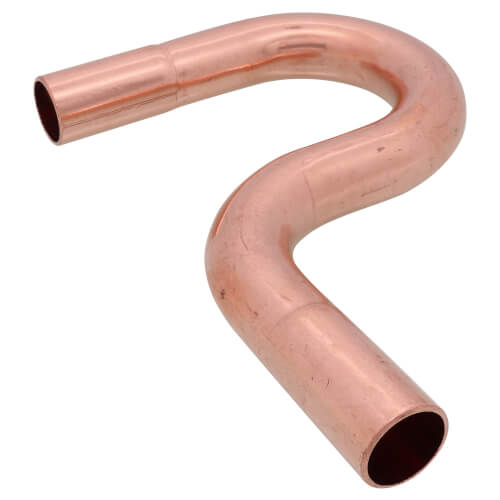

Rls 3761141400111 7/8 in P-Trap

Product Description

The RLS 3761141400111 is a 7/8" ODM P-Trap designed for refrigerant copper press applications. This braze-free fitting joins copper piping without a torch, offering a secure, leak-proof connection. It is compatible with RLS fittings and provides a reliable mechanical joint for HVAC/R systems, rated for 700 Psi pressure and 250 deg temperature.

• 7/8" ODM connection for copper piping.
• Braze-free design eliminates the need for a torch.
• Fully registered and listed to UL 207 for pressures up to 700 PSI.

Product Highlights

Secure, leak-proof, braze-free connection for copper refrigerant lines, reducing labor and eliminating hot work.

Product Information

Standard Information

• Brand: RLS
• Manufacturer Part Number: 3761141400111
• Country of Origin: USA

Technical Specifications

• Size: 7/8"
• Connection Type: ODM
• Finish: Copper
• End Style: Press End
• Fitting Type: P-Trap
• Material: Refrigerant Grade Copper
• Pressure Rating: 700 Psi
• Temperature Rating: 250 deg
• Type: Flame-Free
• Pipe Size: 7/8 Inch x 7/8 Inch
• Pipe End Type: ZoomLock x ZoomLock
• Pipe Size to Horizontal Dimension: 6.69 Inch
• Overall Height: 4.65 Inch
• Applicable Standard: UL 207, UL (Canada and US), ASHRAE-15, ANSI 15/31.5, ASME B31.5, ICC-ES, PMG-1296, CRN
• Application: High Pressure HVAC/R, Glycol, Non-Potable Water
• Material Specification: ASTM-B75 or ASTM-B743
