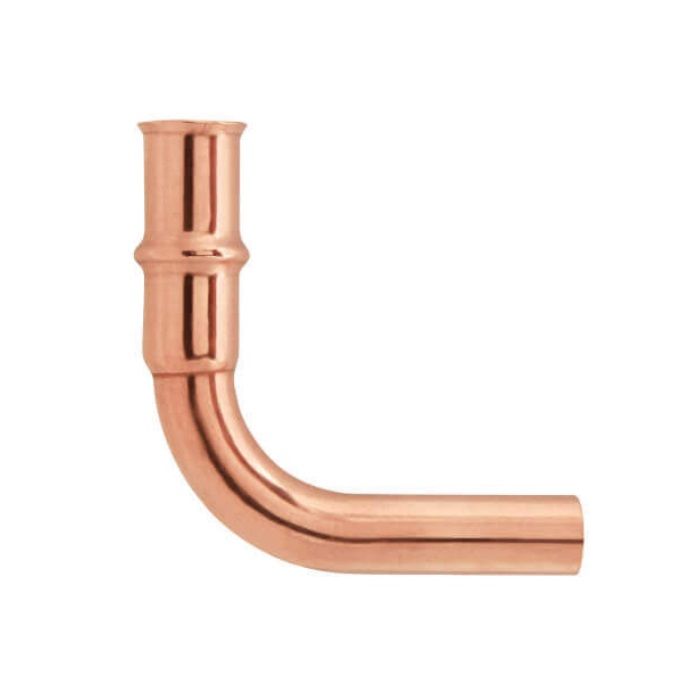

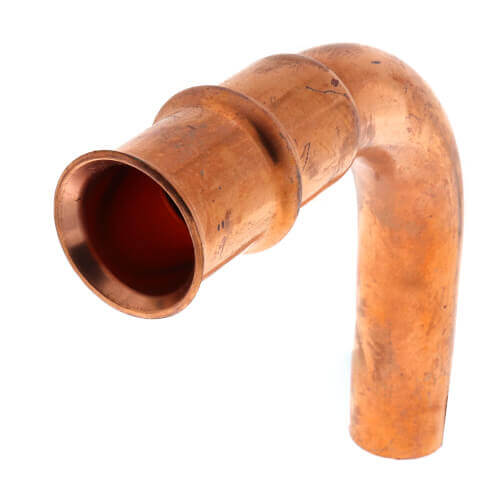

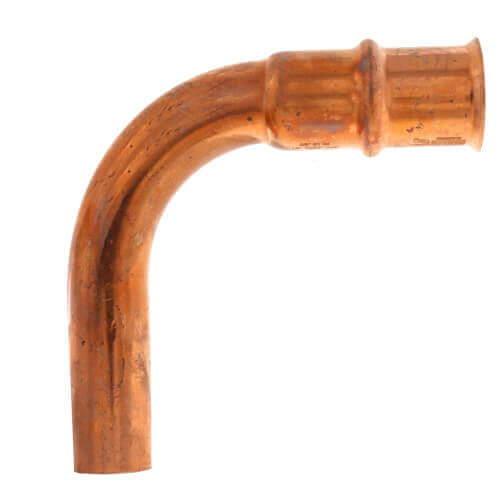

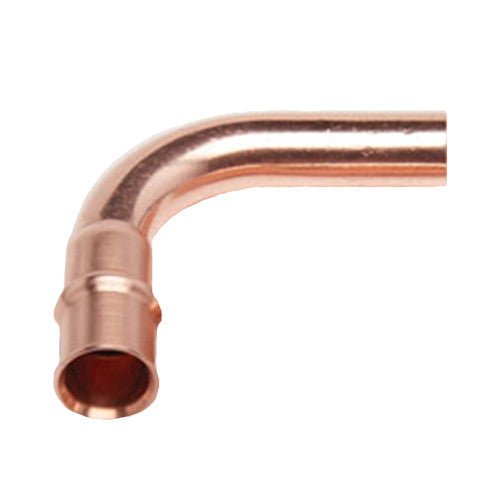

Rls 3501101000111 90 deg Street Elbow 5/8 in Press x 5/8 in Male C

Product Description

The RLS 3501101000111 90 Deg Street Elbow is a copper press fitting designed for joining copper piping without brazing. This one-piece fitting provides secure, leak-proof connections, offering a repeatable alternative to traditional brazing. It is suitable for HVAC/R systems, including heat pumps, air conditioning, and refrigeration applications. Professionals report significant time and labor savings compared to brazing.

• 90-degree street elbow design for directional changes.
• 5/8 inch press connection and 5/8 inch male C connection.
• Constructed from copper for durability and compatibility.

Product Highlights

Braze-free fitting for secure, leak-proof copper pipe connections in HVAC/R systems.

Product Information

Standard Information

• Brand: RLS
• Manufacturer Part Number: 3501101000111
• Country of Origin: USA

Technical Specifications

• Brand: RLS
• MPN: 3501101000111
• Type: 90 deg Street Elbow
• Connection Type: Press x Male C
• Connection Size: 5/8 in x 5/8 in
• Material: Copper
• Insertion Depth: 1-1/4 in
• Minimum Operating Temperature: -40°F
• Maximum Operating Temperature: 300°F
• End Style: Press End
• Maximum Rated Pressure: 700 PSI
• Continuous Operating Temperature: 250°F
• Approved Refrigerants: R-32, R-125, R-134a, R-143a, R-152a, R-227ea, R-290, R-404A, R-407A, R-407B, R-407C, R-407F, R-407G, R-407H, R-410A, R-417A, R-421A, R-422A, R-422B, R-422C, R-422D, R-424A, R-427A, R-434A, R-437A, R-438A, R-442A, R-444A, R-444B, R-445A, R-447A, R-448A, R-448A, R-449A, R-449B, R-449C, R-450A, R-451A, R-451B, R-452A, R-452B, R-453A, R-454A, R-454A, R-454B, R-454C, R-455A, R-456A, R-457A, R-458A, R-507A, R-513A, R-513B, R-515A, R-515B, R-600, R-600a, R-718, R-1234yf, R-1234ze, Ethylene Glycol
• Part Number: 382847
