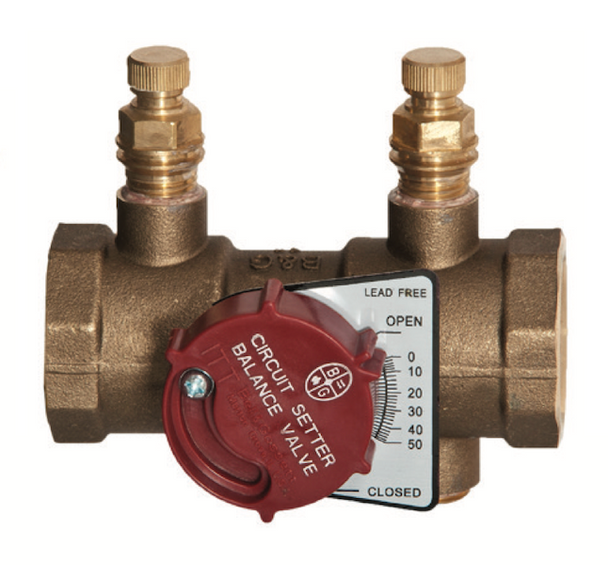

Bell & Gossett 117414LF CB-1/2 LF Brass Calibrated Balance Valve, 1/2 Inch, NPT, Lead-Free

Product Description

Equip your HVAC systems with the Bell & Gossett 117414LF CB-1/2 LF, a meticulously engineered circuit setter designed for optimal fluid flow control in industrial and commercial settings. A lead-free brass construction ensures compliance with stringent health standards and offers exceptional durability.

• Calibrated balance valve that doubles as a flow meter and shut-off valve.
• Lead-free, brass body suitable for potable water systems.
• External manual balance valve adjustment for simple system tuning.

Product Highlights

With its 1/2 inch NPT connection, this device facilitates precise calibration for balanced flow, contributing directly to the system's efficiency and operational cost savings. The bi-directional design permits installation in any configuration, enhancing versatility across various applications.

Product Information

Standard Information

• Brand: Bell & Gossett
• MPN: 117414LF
• Connection Size: 1/2 inch
• Connection Type: NPT

Technical Specifications

• Body Material: Brass
• Max Pressure: 400 psig
• Valve Type: Circuit Setter
• Temperature Rating: -4 to 250 degrees Fahrenheit
• Dimension: 2.94 inches L x 1.98 inches W x 3.02 inches H
• Standards/Certifications: CSA certified AB1953, ANSI/NSF 372, 61 annexure G
