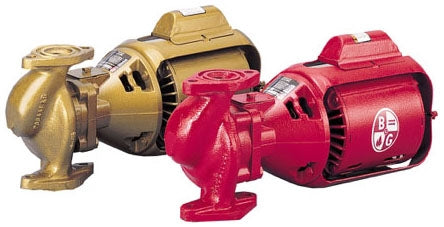

Bell & Gossett 102214 Circulator Pump 1/6 HP 115V

Product Description

The Bell & Gossett 102214 Circulator Pump is designed for various industrial and residential applications. This pump features a 1/6 horsepower motor and operates at 115 volts, ensuring reliable and efficient performance. It is constructed with a durable cast iron body and a non-ferrous impeller, making it suitable for rugged environments.

• 1/6 horsepower motor
• 115 volts
• Durable cast iron construction

Product Highlights

This booster pump is ideal for hydronic heating and domestic hot water circulation. Its three-piece, oil-lubricated design allows for easy maintenance and field service. With over 10 million units installed, the Series 100 has proven itself in the field.

Product Information

Standard Information

• Brand: Bell & Gossett
• MPN: 102214

Technical Specifications

• Horsepower: 1/6 hp
• Voltage: 115V
• Amperage: 1.9 A
• Flow Range: 0-75 GPM
• Maximum Head: 10 Feet
• Connection Size: 2 inches
• Connection Type: Flanged
• Material: Cast Iron
• Motor Speed: 1725 RPM
• Max Pressure: 125 PSI
• Max Temperature: 225°F
• Phase: Single
• Type: 3-Piece
• Bearing Type: Sleeve
