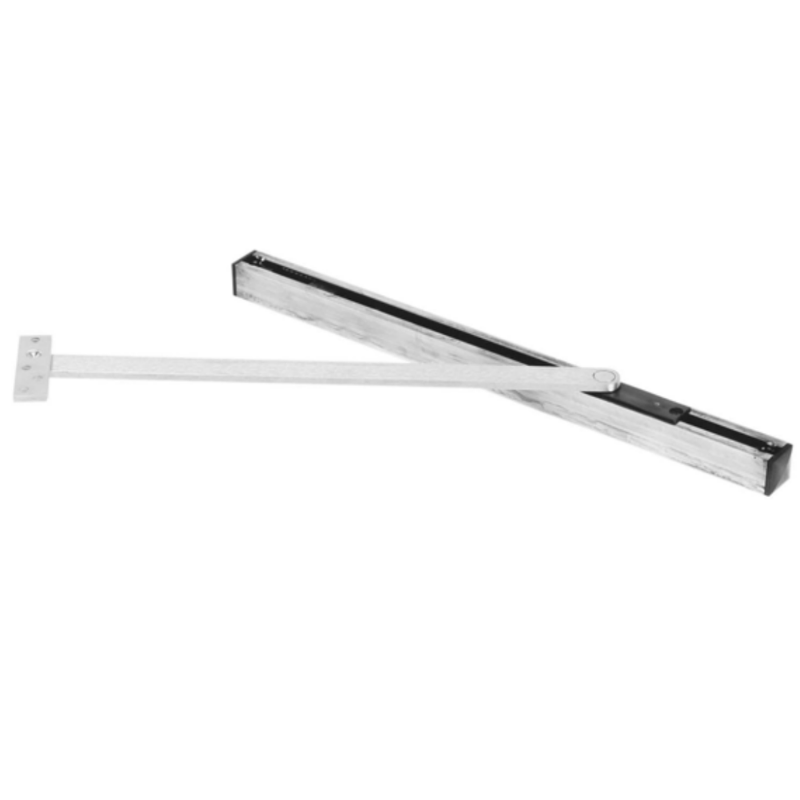

Rixson 1-436 630 Concealed Overhead Door Stop Heavy Duty (38-1/16 - 43 inches Door Width for Butt Offset Pivots, 41-1/16 inches - 46 inches Door Width for Center Hung Pivots)

Product Description

The RIXSON 1-436-630 is a heavy-duty concealed overhead door stop designed for high-performance commercial installations with larger door openings. Accommodating single- or double-acting doors, it supports butt hinges, offset pivots, and center-hung pivot systems with door openings from 38-1/16" to 46" depending on configuration. Built for 1-3/4" minimum door thickness, it provides consistent hold-open control to 110 degrees.

• Interior or exterior doors
• Single or double acting
• Non-handed

Product Highlights

This heavy-duty door stop is recommended for high traffic, heavy abuse installations. Features a slide track design and a durable slider cam and shock block.

Product Information

Standard Information

• Brand: RIXSON
• Manufacturer Part Number: 1-436 630
• Country of Origin: USA

Technical Specifications

• Manufacturer: Rixson
• SKU: 1-436-630
• Origin: USA
• Unit of Measure: Each
• Base Material: Stainless Steel
• Finish Description: Satin Stainless Steel
• Finish: 630/US32D
• Fire Rated: 3 Hours {A}
• Series: Rixson Accessories
• Color: Satin Stainless Steel
• Color Code: 630/US32D
• Package Qty: 1
• Special Marks: Fire rated 3 Hours {A}
• Mounting Type: Concealed Mount
• Grade: ANSI/BHMA Grade 1
• For Use With: Interior or Exterior Doors
• Application: Interior or Exterior Doors; Single or Double Acting
• Function: Stop Only
• Door Size: 38-1/16 Inch to 46 Inch
• Door Opening: 38-1/16" to 43" (Butt/Offset Pivots), 41-1/16" to 46" (Center Hung)
• Standards: ANSI/BHMA A156.8 Grade 1
• For Door Thickness: 1-3/4 Inch
• Function Family: Overhead Door Stop
• Jamb Bracket Width: 1/4 Inch
• Jamb Bracket Height: 1 Inch
• Jamb Bracket Length: 3-1/2 Inch
• Product Type: Door Closer/Holder/Stop
• Sub-Series: Rixson-1-436
• Maximum Door Opening: 110°
• Alternate Part Number-1: 247025
