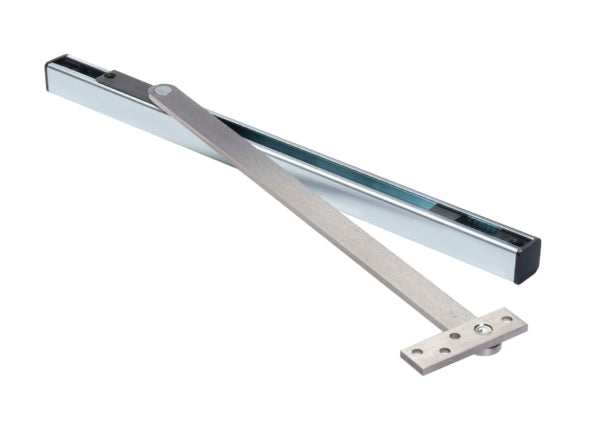

Rixson 1-336 630 Concealed Mount Overhead Stop

Product Description

The RIXSON 1-336 630 is a concealed mount overhead stop designed to control door swing and protect door hardware, frames, and adjacent walls from impact damage. Installed at the top of the door rather than at the floor, this overhead stop keeps the mounting hardware out of sight and eliminates the trip hazard associated with floor-mounted stops. It is suited for commercial and institutional door openings where a clean appearance and reliable door control are required. Licensed door hardware professionals and commercial finish carpenters typically handle installation in new construction and retrofit applications.

The 1-336 630 is used in commercial door openings where floor stops are not practical or permitted. Common applications include high-traffic corridors, restrooms, and public-access spaces where maintaining a clear floor path is a priority. The concealed mount design integrates into the door and frame without exposed surface hardware, making it appropriate for openings with finish requirements or ADA-compliant accessible routes. The 630 finish indicates a satin stainless steel appearance, which coordinates with stainless and brushed metal door hardware families.

Key Features

• Concealed mount design keeps hardware hidden within the door and frame for a clean finish
• Overhead stop location eliminates floor-mounted hardware and associated tripping hazards
• Controls door swing to protect frames, walls, and door hardware from impact
• 630 finish provides a satin stainless steel appearance compatible with matching hardware sets
• Designed for commercial door openings requiring discreet, durable door control

Compatibility

Designed as an OEM-style overhead stop for commercial door openings requiring concealed mount door control hardware.

Installation Notes

Installation is typically performed by a licensed door hardware installer or commercial carpenter familiar with overhead door control devices. The door and frame must be prepared with the correct mortise or bore pattern before fitting the stop components. Consult the manufacturer installation template to ensure proper alignment between the door-mounted and frame-mounted components. Verify that the door and frame construction are compatible with concealed overhead hardware before ordering.

Technical Specifications

• Mount Type: Concealed overhead mount
• Finish: 630 satin stainless steel
• Hardware Type: Overhead stop

Standard Information

• Brand: RIXSON
• Manufacturer Part Number: 1-336 630
