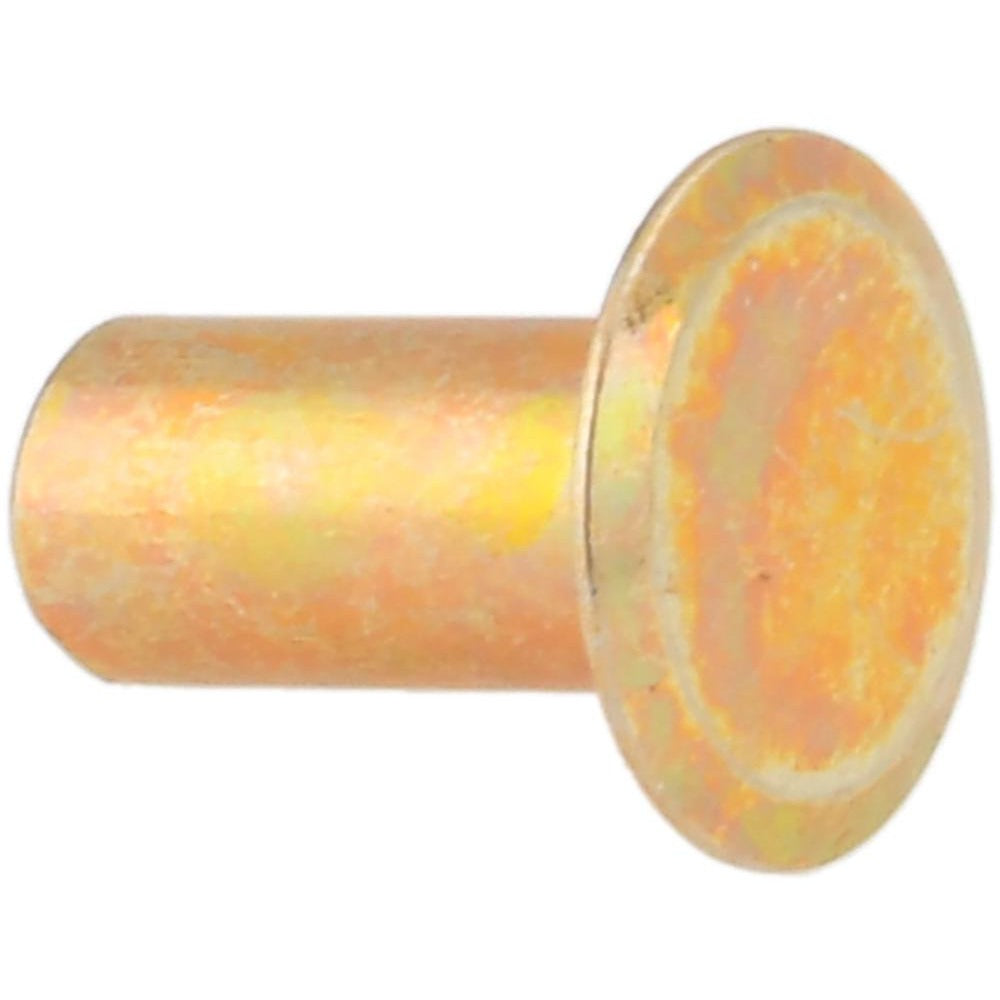

Rivetking /XCT375008SY/P100 Semi Tubular Rivet 100 Pack

Product Description

The RIVETKING /XCT375008SY/P100 is a semi tubular rivet with a countersunk head profile, manufactured from zinc plated steel for corrosion resistance in light industrial and assembly applications. It features a 3/16 inch body diameter and a 1/4 inch length under head, making it suited for thin-material joining where a flush finished surface is required. The 150-degree countersunk head angle and 3/8 inch head diameter provide positive seating in pre-drilled countersunk holes. Supplied in packs of 100, this rivet is used by assembly technicians, maintenance professionals, and tradespeople working with sheet metal, brackets, and light structural components.

This rivet is designed for use in applications where a flush or recessed head finish is necessary, such as sheet metal fabrication, HVAC enclosure assembly, electrical panel construction, and general mechanical assembly. The zinc plating provides a base level of protection against oxidation in dry to mildly humid indoor environments. It accepts hole diameters ranging from 0.134 to 0.141 inches, giving installers a controlled fit tolerance. The pack quantity of 100 units is appropriate for production runs or service kits requiring consistent fastener supply.

Key Features

• Countersunk head at 150 degrees for flush seating in pre-drilled countersunk holes
• Zinc plated steel construction provides basic corrosion protection for indoor use
• 3/16 inch body diameter with 1/4 inch length under head for thin-material applications
• Hole diameter range of 0.134 to 0.141 inches allows precise fit tolerance
• 3/8 inch head diameter for consistent bearing surface
• Pack of 100 units supports production and service applications

Compatibility

Designed as a standard semi tubular countersunk rivet for use in sheet metal, light structural, and general assembly applications requiring a 3/16 inch body diameter fastener with a 150-degree countersunk head profile.

Installation Notes

Installation is performed by mechanical assembly technicians using standard rivet setting tools appropriate for semi tubular rivets. Ensure the receiving material is pre-drilled and countersunk to match the 150-degree head angle before setting. Verify hole diameter falls within the 0.134 to 0.141 inch tolerance range for proper fit. Disconnect or de-energize any assembly or fixture before fastener installation where required by applicable safety standards.
