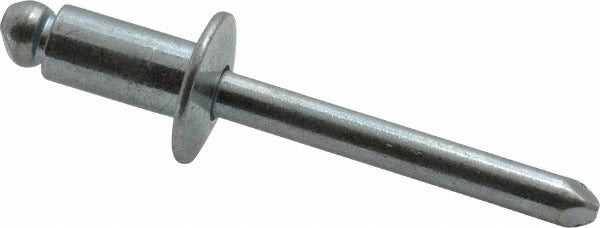

Rivetking SBS84/P100 Blind Rivet Size 84 Dome Head 100 Pack

Product Description

The RIVETKING SBS84/P100 is an open end blind rivet with a dome head profile, designed for permanent fastening in single-sided access applications. The steel body pairs with a phosphate-finished steel mandrel for consistent setting performance. At 0.25 inches in body diameter, it accepts a size F drill bit and fits holes ranging from 0.257 to 0.261 inches. Grip range runs from 0.02 to 0.25 inches, making it suitable for thin-stack to moderate-thickness material assemblies. Tensile strength is rated at 1,240 pounds and shear strength at 1,000 pounds. This rivet meets IFI 114 Grade 30 standards. It is sold in a package of 100.

This rivet is used in light structural, HVAC ductwork, electrical enclosure, and general sheet metal fabrication applications where access is limited to one side of the joint. The dome head provides a low-profile finished appearance on the blind-side face. Installation suits fabrication shops, mechanical contractors, and field service technicians working with steel sheet, tubing, or formed channel assemblies. The 0.25-inch body diameter is one of the more common sizes stocked for general-purpose blind fastening across residential and light commercial work.

Key Features

• Open end design allows mandrel stem to pass through for standard blind rivet tool setting
• Dome head type provides a rounded, low-profile finished surface
• Steel body and steel mandrel for metal-to-metal fastening applications
• Phosphate finish on mandrel for corrosion resistance during storage and handling
• Tensile strength of 1,240 pounds and shear strength of 1,000 pounds
• Meets IFI 114 Grade 30 fastener standard

Compatibility

Designed as a standard blind rivet for use with any hand-operated or pneumatic blind rivet tool sized for 0.25-inch body diameter rivets. Requires a size F drill bit for proper hole preparation.

Installation Notes

Install with a hand-lever or pneumatic blind rivet tool rated for 0.25-inch diameter rivets. Drill the mating hole to a size F bit to stay within the 0.257 to 0.261-inch hole diameter tolerance. Ensure all mating surfaces are clean and flush before setting. After setting, inspect the dome head for full seating and confirm the mandrel has broken cleanly at the break-off groove.
