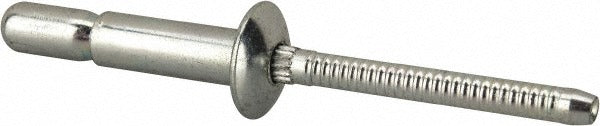

Rivetking. SBS67/STR/P100 Structural Blind Rivet Size 67 100pk

Product Description

The RIVETKING. SBS67/STR/P100 is a structural blind rivet with a locking stem, designed for high-load fastening applications where one-sided access is required. The body and mandrel are both steel, delivering a tensile strength of 1000 pounds and shear strength of 1300 pounds. The dome head measures 0.385 inches in diameter, and the 3/16-inch body diameter fits a drilled hole range of 0.194 to 0.204 inches. This rivet meets IFI 134 standards and is sized at code 67, making it a reliable choice for structural assembly work performed by mechanics, millwrights, ironworkers, and general contractors.

This rivet is suited for structural joining in steel fabrication, industrial assembly, trailer manufacturing, HVAC ductwork framing, and similar applications where standard open-end rivets lack sufficient holding strength. The locking stem design retains the mandrel after setting, increasing clamp load and resistance to vibration loosening. It handles grip ranges from 0.214 to 0.437 inches, accommodating variable material stack thicknesses common in production and field repair scenarios. Each package contains 100 rivets, supporting both small repair jobs and higher-volume assembly runs.

Key Features

• Locking stem retained after setting for increased clamp load and vibration resistance
• Tensile strength of 1000 pounds and shear strength of 1300 pounds per IFI 134
• Steel body and steel mandrel for structural-grade performance
• Dome head profile with 0.385-inch head diameter and 0.085-inch head height
• Grip range of 0.214 to 0.437 inches accommodates variable material thicknesses
• Fits No. 10 wire gauge drill size, hole diameter 0.194 to 0.204 inches

Compatibility

Designed as an IFI 134 compliant structural blind rivet for use in steel-to-steel and mixed-material assemblies requiring a 3/16-inch body diameter and size 67 grip specification.

Installation Notes

Installation requires a pneumatic or hand-operated blind rivet tool rated for structural rivets. Before riveting, drill the hole to the specified diameter range of 0.194 to 0.204 inches using a No. 10 wire gauge drill bit and deburr the hole edges. Ensure all mating surfaces are properly aligned and clamped before setting. The locking stem will be retained in the set rivet body - do not attempt to remove it, as this is the intended final condition.
