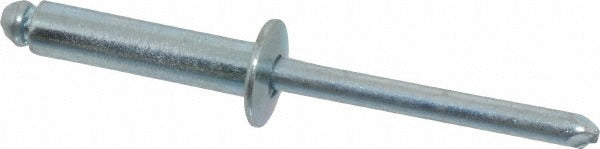

Rivetking SBS610/P250 Open End Blind Rivet 250 Pack

Product Description

The RIVETKING SBS610/P250 is a size 610 open end blind rivet with a dome head, steel body, and steel mandrel, sold in a pack of 250. This fastener is designed for one-side installation in applications where access to the back of the workpiece is restricted. The body diameter is 3/16 inches, with a grip range of 0.501 to 0.625 inches, making it well-suited for securing material stacks within that thickness range. Tensile strength is rated at 680 pounds and shear strength at 540 pounds. The mandrel carries a phosphate finish for corrosion resistance. Licensed contractors, fabricators, and maintenance professionals working with steel assemblies will find this a dependable production fastener.

This rivet is used across a wide range of commercial and industrial applications including HVAC ductwork fabrication, electrical enclosure assembly, metal panel installation, and general sheet metal work. The dome head profile provides a low-profile finished appearance on the accessible face. The open end design allows the mandrel stem to pull through and set the blind side bulge, securing multiple layers of material without requiring a back-side operator. Packaged in a quantity of 250, this SKU is suited for shop use and repetitive field installation tasks.

Key Features

• Size 610 open end design for single-side installation access
• Steel body and steel mandrel construction rated to 680 pounds tensile strength and 540 pounds shear strength
• Grip range of 0.501 to 0.625 inches accommodates varied material stack thicknesses
• 3/16 inch body diameter requires a No. 11 wire gauge drill hole
• Dome head profile delivers a clean, low-profile finish on the visible face
• Phosphate-finished mandrel for added corrosion resistance
• Meets IFI 114 Grade 30 fastener standard

Compatibility

Designed for use in standard blind rivet tools accepting 3/16 inch body diameter rivets. Requires a drilled or punched hole diameter of 0.192 to 0.196 inches, equivalent to a No. 11 wire gauge drill bit.

Installation Notes

Installation requires a hand-operated or pneumatic blind rivet tool sized for 3/16 inch rivets. Drill or punch the hole to the specified diameter range of 0.192 to 0.196 inches before insertion. Ensure both workpieces are flush and clamped before pulling the mandrel to prevent misalignment during setting. Discard broken mandrel stems safely and inspect each set rivet head for complete seating.
