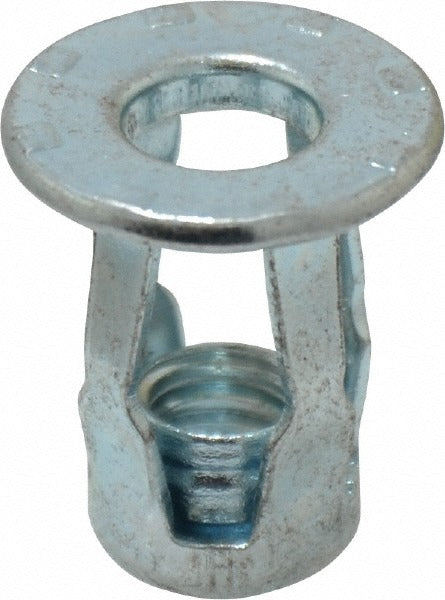

Rivetking. /JK-0601/P25 Rivet Nut 1/4-20 Unc 25 Pack

Product Description

The RIVETKING. /JK-0601/P25 is a screwdriver-installed rivet nut designed to create strong, load-bearing threaded inserts in thin-gauge sheet metal, panels, and structural members. Manufactured from steel with a clear zinc plating for corrosion resistance, this rivet nut accepts a 1/4-20 UNC threaded fastener and installs without a dedicated pneumatic tool. The 0.625-inch flange diameter distributes clamp load across the base material, and the 0.718-inch overall length accommodates a grip range of 1/64 inch minimum to 0.075 inches maximum. Electricians, HVAC fabricators, plumbers, and general trade contractors use these where a blind-side threaded connection is required.

This rivet nut is suited for residential and light commercial applications where standard nut-and-bolt access is limited to one side of the workpiece. Typical install scenarios include electrical enclosure assembly, HVAC sheet metal duct bracketing, panel fabrication, and equipment mounting. The screwdriver-drive installation method makes it practical for field work where a rivet nut tool is not on hand. Each package contains 25 pieces under a single order unit.

Key Features

• 1/4-20 UNC thread standard for broad fastener compatibility
• Screwdriver-installed design eliminates the need for a dedicated rivet nut tool
• Clear zinc plated steel construction provides corrosion resistance in typical indoor environments
• Grip range of 1/64 inch to 0.075 inches suits thin sheet metal and panel stock
• 0.625-inch flange diameter spreads load and prevents pull-through
• Packaged in quantities of 25 for shop and field stocking

Compatibility

Designed as an OEM-style blind-side threaded insert for use in steel, aluminum, or composite panels accepting a 1/4-20 UNC threaded fastener with a material thickness within the stated grip range.

Installation Notes

Install by a qualified tradesperson familiar with threaded fastener systems and applicable codes. Drill or punch a clean hole matching the body diameter of 0.438 inches before insertion. Power down or de-energize any adjacent electrical systems before working in enclosures or panels. Do not exceed the stated maximum grip range, as over-compression will deform the flange and reduce holding strength.
