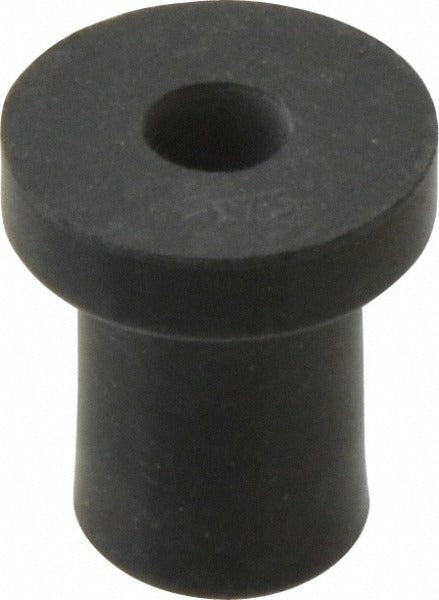

Rivetking /JF-6200/P25 Rubber Rivet Nut 1/4-20 Unc 25-pack

Product Description

The RIVETKING /JF-6200/P25 is a rubber-insulated rivet nut designed for applications requiring vibration damping, electrical isolation, or a secure threaded insert in thin or soft materials. The nut body is molded from rubber with a brass internal nut, delivering a combination of flexibility and thread integrity. It accepts a 1/4-20 UNC thread, has a body diameter of 0.5 inches, an overall length of 0.831 inches, and a flange diameter of 0.74 inches with a flange thickness of 0.187 inches. Electricians, HVAC technicians, and sheet metal fabricators commonly install this type of fastener when a standard rivet nut would transmit vibration or create an unwanted electrical path through a panel or bracket.

This rivet nut is suited for residential and light commercial applications where threaded inserts must be installed into pre-drilled holes in sheet metal, enclosures, control panels, or equipment housings. The rubber body compresses during installation to grip the material, while the brass insert provides a durable threaded seat for a 1/4-20 bolt or machine screw. It is sold in a package quantity of 25, making it practical for service vans and job-site use. Minimum grip range starts at 0.031 inches and maximum grip is 0.187 inches, covering a range of material thicknesses commonly encountered in HVAC cabinets and electrical enclosures.

Key Features

• Rubber body with brass nut insert for vibration isolation and thread durability
• 1/4-20 UNC thread standard for broad fastener compatibility
• Flange diameter of 0.74 inches provides a wide bearing surface to resist pull-through
• Grip range of 0.031 to 0.187 inches accommodates varying panel thicknesses
• Overall length of 0.831 inches fits standard sheet metal and light fabrication applications
• Package quantity of 25 units for multi-fastener jobs

Compatibility

Designed as an OEM-style threaded insert for use in sheet metal panels, enclosures, and equipment housings requiring a 1/4-20 UNC rubber-insulated rivet nut with a 0.5-inch body diameter.

Installation Notes

Installation requires a rivet nut setting tool sized for the 0.5-inch rubber body diameter. Power down and de-energize any panel or enclosure before installing fasteners in live equipment. The rubber body is compressible and should not be over-set, as excess force can tear the body or reduce grip integrity. Follow applicable NEC guidelines when installing threaded inserts in electrical enclosures.
