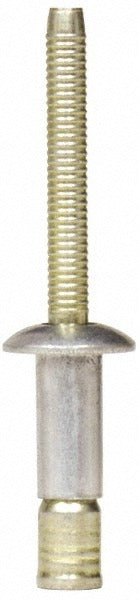

Rivetking FBF86/TB/P100 Blind Rivet Size 86 Dome Head Ss

Product Description

The RIVETKING FBF86/TB/P100 is a structural blind rivet with a locking stem design, built for high-strength fastening applications where access is limited to one side of the workpiece. The body and mandrel are both stainless steel, providing corrosion resistance in demanding environments. With a 0.25-inch body diameter, a dome head measuring 0.53 inches in diameter, and a grip range of 0.08 to 0.375 inches, this rivet suits a wide range of material stack thicknesses. The locking stem feature retains the mandrel inside the rivet body after setting, increasing shear and tensile strength compared to standard open-end blind rivets. Sold in a package of 100.

This rivet is used in structural and semi-structural assembly work across HVAC equipment fabrication, electrical enclosures, sheet metal work, and general mechanical assemblies. The stainless steel construction makes it appropriate for outdoor, marine-adjacent, or high-humidity environments where carbon steel fasteners would corrode. Installation requires a minimum hole diameter of 0.257 inches and a maximum hole diameter of 0.261 inches, making precise pre-drilled holes critical to proper seating and load performance. Installers working on light-gauge sheet metal, brackets, or panel assemblies will find the dome head profile appropriate for flush or near-flush surface applications.

Key Features

• Structural locking stem design retains mandrel after setting for increased load capacity
• Stainless steel body and mandrel for corrosion resistance in wet or outdoor environments
• Dome head profile with 0.53-inch head diameter and 0.098-inch head height
• Grip range of 0.08 to 0.375 inches accommodates varying material stack thicknesses
• Body diameter of 0.25 inches fits holes drilled to 0.257 to 0.261 inches
• Packaged in quantities of 100 per pack

Compatibility

Designed as an OEM-style structural blind rivet for use in sheet metal, fabrication, and mechanical assembly applications requiring Size 86 dome head rivets with a 0.25-inch body diameter and stainless steel construction.

Installation Notes

Installation is performed with a standard blind rivet pull tool or pneumatic rivet gun sized for 0.25-inch body rivets. Pre-drill holes to between 0.257 and 0.261 inches for proper fit and full load engagement. Ensure material stack thickness falls within the 0.08 to 0.375-inch grip range before setting. The locking stem is captured automatically during the setting process and should not be manually removed after installation.
