Rivetking ABS64/P250 Open End Blind Rivet Size 64 250 Pack

Product Description

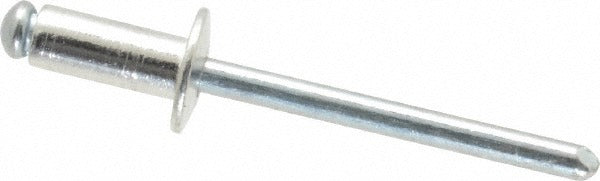

The RIVETKING ABS64/P250 is a Size 64 open end blind rivet designed for fast, single-side fastening in metal fabrication, mechanical assembly, and general trade work. The rivet features an aluminum 5056-alloy body paired with a steel mandrel, delivering a tensile strength of 500 pounds and a shear strength of 380 pounds. The dome head profile measures 3/8 inches in diameter with a head height of 0.060 inches, and the body diameter is 3/16 inches. Each package contains 250 rivets, making it suited for production runs and regular service stock. Licensed tradespeople and fabricators working across HVAC, plumbing support structures, and general sheet-metal applications reach for this size routinely.

This rivet is appropriate for use in light- to medium-gauge material assemblies where access from only one side of the workpiece is available. The grip range of 0.188 to 0.250 inches accommodates a range of material stack thicknesses. The required hole diameter falls between 0.192 and 0.196 inches, corresponding to a No. 11 wire drill size. Suitable for residential and light commercial construction, HVAC duct and bracket assembly, electrical enclosure work, and general mechanical fastening tasks.

Key Features

• Open end blind rivet design allows installation from one side only - no rear access required
• 5056 aluminum body provides corrosion resistance in typical indoor and sheltered outdoor environments
• Steel mandrel delivers reliable setting force and consistent pull strength
• 500-pound tensile strength and 380-pound shear strength for dependable load-bearing performance
• Dome head profile distributes clamping load and sits flush-proud against the workpiece surface
• Pack of 250 supports production-volume and stocking needs

Compatibility

Designed for use in applications requiring a Size 64 open end blind rivet with a 3/16-inch body diameter, 3/8-inch dome head, and a grip range of 0.188 to 0.250 inches. Compatible with any rivet tool or pneumatic riveter accepting standard 3/16-inch blind rivets.

Installation Notes

Install using a hand, lever-action, or pneumatic blind rivet tool rated for 3/16-inch rivets. Drill the mounting hole to the specified No. 11 wire size (0.192 to 0.196 inches) before setting. Ensure material stack thickness falls within the 0.188 to 0.250-inch grip range before selecting this rivet. Wear appropriate eye protection during installation, as mandrel stems are ejected upon setting.
