Rivetking. /ABS62-64LFMG/RT/P100 Blind Rivet Pack 100

Product Description

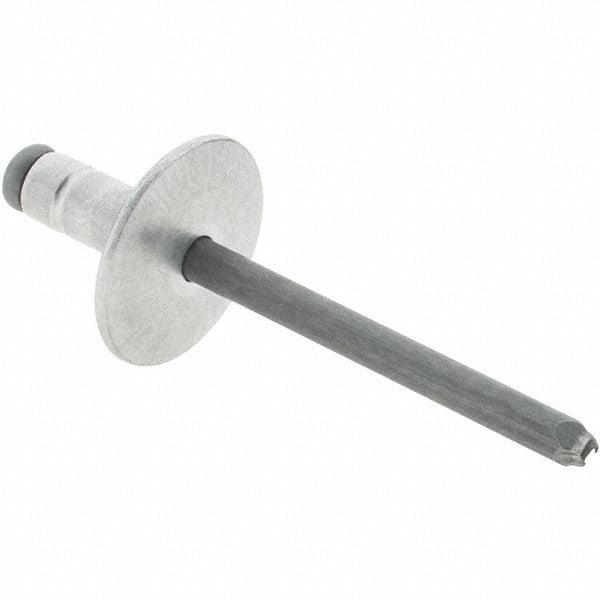

The RIVETKING. /ABS62-64LFMG/RT/P100 is an open end blind rivet with a large flange head, designed for fastening applications where access is limited to one side of the work material. The aluminum body keeps weight low and resists corrosion, while the steel mandrel provides reliable pull strength during installation. The body diameter measures 3/16 inches with a length under head of 0.44 inches. Grip range spans 0.063 to 0.252 inches, making it suitable for a range of material stack thicknesses. This rivet is installed by licensed tradespeople and general contractors in mechanical, electrical, and structural assembly applications.

This open end blind rivet is used across residential and commercial construction, HVAC ductwork fabrication, electrical enclosure assembly, sheet metal work, and general industrial fastening. The large flange head distributes clamping load over a wider surface area, which is useful when fastening softer or thinner base materials. Each package contains 100 rivets, suited for production or service work requiring consistent, repeatable fastening.

Key Features

• Open end design allows standard blind installation from a single side
• Large flange head distributes load and reduces pull-through on thin or soft materials
• Aluminum body resists corrosion and reduces overall fastener weight
• Steel mandrel delivers consistent setting force during installation
• Grip range of 0.063 to 0.252 inches accommodates varied material stack thicknesses
• Sold in a 100-count package for production and service use

Compatibility

Designed as an OEM-style replacement and standard-fit blind rivet for applications requiring a 3/16-inch body diameter open end rivet with a large flange head.

Installation Notes

Installation requires a standard or pneumatic rivet gun sized for 3/16-inch body diameter rivets. Ensure the material stack thickness falls within the 0.063 to 0.252-inch grip range before selecting this rivet for a given application. Verify hole diameter matches the rivet body specification for proper seating and mandrel break. Follow applicable fastener standards and project specifications for rivet spacing and edge distance.
