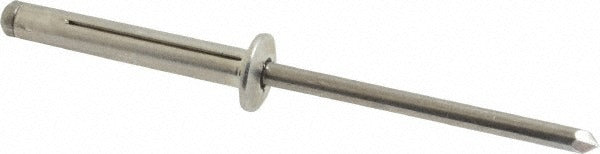

Rivetking ABL0530/P100 Tri Folding Blind Rivet Size 530

Product Description

The RIVETKING ABL0530/P100 is a tri folding blind rivet designed for applications where only one side of the work material is accessible. The aluminum body and aluminum mandrel deliver a lightweight, corrosion-resistant fastening solution suited for sheet metal, HVAC ductwork, electrical enclosures, and light structural assemblies. At size 530, this dome-head rivet has a body diameter of 5/32 inches (0.1563 inches), a grip range of 0.157 to 0.472 inches, and a tensile strength of 224 pounds. The tri folding design expands the mandrel-side legs outward on installation, spreading the load across a wider bearing surface than a standard blind rivet. Installed by HVAC technicians, electricians, sheet metal workers, and maintenance trades using a standard rivet tool.

This rivet is well suited for residential and light commercial applications involving thin-gauge aluminum, steel, and similar materials. Typical install scenarios include duct assembly and patching, electrical panel fabrication, equipment enclosure attachment, and general sheet metal work where back-side access is limited. The dome head profile sits low against the work surface, making it appropriate for areas where a flush appearance is important. Each package contains 100 rivets, sized for high-volume production or repetitive service work.

Key Features

• Tri folding mandrel leg design spreads load for improved holding in thin or soft materials
• Dome head profile with 0.315-inch head diameter and 0.032-inch head height
• Grip range of 0.157 to 0.472 inches accommodates a range of material stack thicknesses
• Tensile strength of 224 pounds and shear strength of 134 pounds
• Bright finish aluminum body and aluminum mandrel resist corrosion in typical indoor and light outdoor environments
• Hole diameter requirement of 0.165 to 0.178 inches fits standard 5/32-inch drill sizes
• Package quantity of 100 rivets per pack

Compatibility

Designed for use in standard blind rivet tools accepting 5/32-inch body diameter rivets. Suitable for aluminum, steel, and similar thin-gauge materials within the stated grip range of 0.157 to 0.472 inches.

Installation Notes

Installation requires a hand, pneumatic, or battery-powered rivet tool rated for 5/32-inch aluminum rivets. Drill the work material to a hole diameter between 0.165 and 0.178 inches before inserting the rivet body. Ensure total material stack thickness falls within the 0.157 to 0.472-inch grip range before pulling the mandrel. Discard spent mandrel stems and inspect the set rivet head for full seating against the work surface before releasing the tool.
