Rivetking ABA66/P500 Open End Blind Rivet Size 66 500 Pack

Product Description

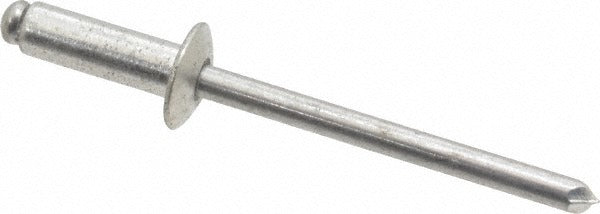

The RIVETKING ABA66/P500 is an open end blind rivet with a dome head, aluminum body, and aluminum mandrel, sold in a 500-piece package. Sized at 66, it features a 3/16-inch body diameter and accepts a grip range of 0.251 to 0.375 inches, making it a versatile fastener for light-to-medium sheet material applications. Tensile strength is rated at 320 pounds and shear strength at 260 pounds. The bright finish aluminum construction suits applications where weight and corrosion resistance matter. This rivet is installed by electricians, sheet metal fabricators, HVAC installers, and general mechanical trades using a standard blind rivet tool.

The ABA66/P500 is suited for residential and commercial sheet metal assembly, HVAC ductwork, electrical enclosures, and general fabrication where access is limited to one side of the workpiece. The dome head profile provides a low-profile finished appearance. The 500-piece packaging makes this appropriate for production runs or service van stock. The rivet body is manufactured from 5052-grade aluminum, which offers good corrosion resistance and formability in typical trade environments.

Key Features

• Open end blind rivet - installs from one side with no rear access required
• Dome head style with 3/8-inch head diameter and 0.060-inch head height
• Grip range of 0.251 to 0.375 inches accommodates a range of material stack thicknesses
• Body diameter of 3/16 inch requires a No. 11 wire gauge drill size hole
• 320-pound tensile strength and 260-pound shear strength per IFI 114 Grade 11
• 5052-grade aluminum body and mandrel with bright finish
• 500-piece package quantity reduces reorder frequency for high-volume use

Compatibility

Designed as an OEM-style blind rivet replacement or new installation fastener for applications requiring a Size 66 open end dome head rivet with a 3/16-inch body diameter and a minimum hole diameter of 0.192 inches to a maximum of 0.198 inches.

Installation Notes

Installation requires a standard manual or pneumatic blind rivet tool sized for a 3/16-inch rivet body. Drill or punch the mating hole to between 0.192 and 0.198 inches before installation. Verify grip range covers the full material stack thickness before selecting this rivet for the application. Ensure all materials being joined are de-energized and secured before fastening in electrical or HVAC panel assemblies.
