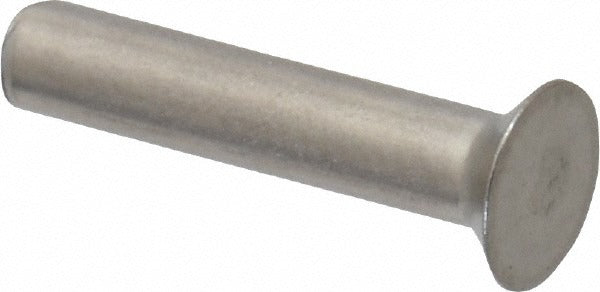

Rivetking 12N62RC93P Solid Rivet Stainless Steel Countersunk

Product Description

The RIVETKING 12N62RC93P is a solid rivet with a 0.125-inch body diameter and a 90-degree countersunk head profile. It is manufactured from Grade 18-8 stainless steel with an uncoated finish, making it suitable for applications where corrosion resistance is a priority. The 0.625-inch length under head provides reliable grip across a range of sheet thicknesses. Solid rivets form a permanent mechanical fastener when set with a bucking bar or rivet gun, and are a standard choice in structural, sheet metal, and equipment fabrication work performed by qualified tradespeople and fabricators.

This rivet is suited for light structural and sheet metal applications in HVAC ductwork fabrication, equipment enclosures, electrical panels, and general mechanical assemblies. The countersunk head sits flush with the material surface after installation, which is preferred when a smooth, low-profile finish is required on the fastened face. The stainless steel construction makes it appropriate for both indoor and outdoor environments where exposure to moisture or mild corrosives is expected.

Key Features

• 0.125-inch body diameter for standard small-fastener applications
• 0.625-inch length under head provides adequate grip for typical sheet thicknesses
• 90-degree countersunk head angle delivers a flush surface finish after setting
• Grade 18-8 stainless steel construction for corrosion resistance
• Uncoated finish with no added plating or coating
• Does not meet military specifications - intended for commercial and industrial use

Compatibility

Designed as a standard solid rivet for use in commercial and industrial sheet metal, HVAC fabrication, enclosure assembly, and general mechanical fastening applications requiring a 0.125-inch diameter countersunk fastener.

Installation Notes

Solid rivets are set by a licensed sheet metal mechanic or trained fabricator using a rivet gun and bucking bar, or a dedicated rivet press. Ensure the work piece is properly clamped and the drilled hole diameter matches the rivet body diameter before driving. De-energize and lock out any electrical equipment before performing fastener work on or near live panels or assemblies. Follow applicable codes and shop safety procedures when working with pneumatic or hydraulic setting tools.
