Rittal 8806500 Ts 8 Freestanding Enclosure Nema 12 Sheet Steel

Product Description

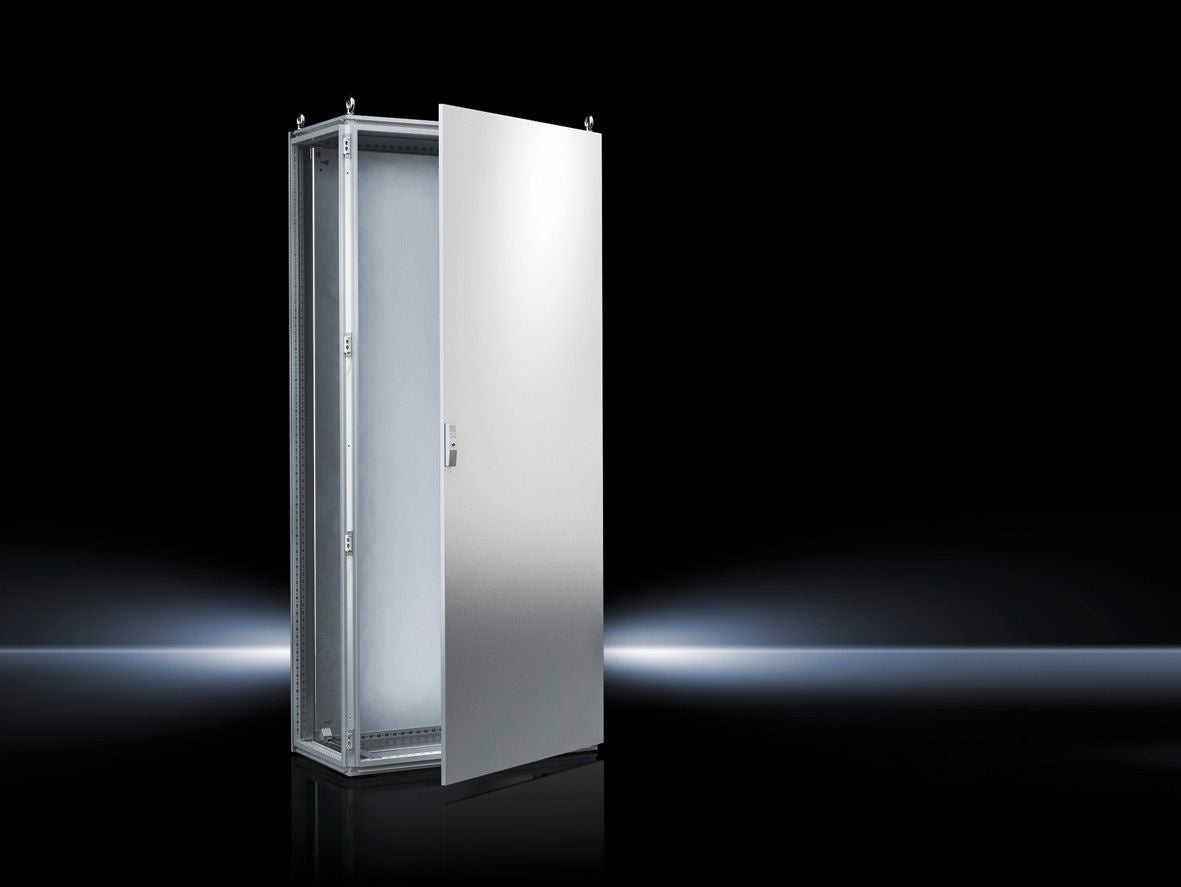

The RITTAL 8806500 is a single-door, freestanding compact enclosure from the TS 8 bayed enclosure system, measuring 32 inches wide, 79 inches tall, and 24 inches deep. Built on a 16-fold tubular steel frame, the enclosure is designed for industrial control, data center, outdoor, and hybrid electrical applications where robust protection and flexible expansion are required. The cabinet carries a NEMA 12 and IP55 rating, making it suitable for environments where dust and non-direct water contact are concerns. Licensed electricians and industrial panel builders are the primary trades for installation and integration of this enclosure.

The 8806500 is engineered for use within the TS 8 baying system, allowing multiple units to be joined side by side for larger panel arrays. Its modular design accommodates industrial facilities, data centers, and outdoor installations where scalable, mission-critical enclosures are required. The enclosure ships complete with the frame, front door, roof plate, rear panel, detachable components, and four eyebolts for rigging. The right-hand door catch on the single-door configuration can be field-converted to a left-hand catch without additional hardware.

Key Features

• 16-fold tubular steel frame with flexible baying options for side-by-side system expansion
• NEMA 12 and IP55 rated for protection against dust and incidental water exposure
• Dip-coat primed frame with powder-coated exterior in light gray textured finish on door, roof, and rear panel
• 3 mm double-bit lock on continuous-hinged front door
• Right-hand door catch field-convertible to left-hand orientation
• Includes mounting plate, roof plate, rear panel, and four eyebolts for lifting and rigging

Compatibility

Designed for use within the RITTAL TS 8 baying enclosure system, supporting industrial, data center, outdoor, and hybrid application configurations.

Installation Notes

Installation should be performed by a licensed electrician or qualified panel builder in accordance with the National Electrical Code (NEC) and any applicable local codes. Disconnect and lock out all power sources before working inside the enclosure or connecting conductors. The four included eyebolts are rated for lifting during positioning and must be removed before putting the enclosure into service. Verify floor leveling and anchor to a structural surface per local seismic and building requirements before populating the enclosure.

Technical Specifications

• Series: TS 8
• Configuration: 1-Door Freestanding Compact
• Width: 32 inches
• Height: 79 inches
• Depth: 24 inches
• NEMA Rating: NEMA 12
• IP Rating: IP55
• Material: Sheet Steel (Carbon Steel)
• Finish: Dip-coat primed frame, powder-coated exterior, light gray textured paint
• Lock Type: 3 mm Double Bit
• Door Hinge: Continuous Hinged Cover
• Mounting Type: Freestanding
• Certifications: UL Listed, CSA, TUV, DNV, VDE, Germanischer Lloyd, Russian Maritime Register of Shipping, Lloyds Register of Shipping, Bureau Veritas

Standard Information

• Brand: RITTAL
• Manufacturer Part Number: 8806500
