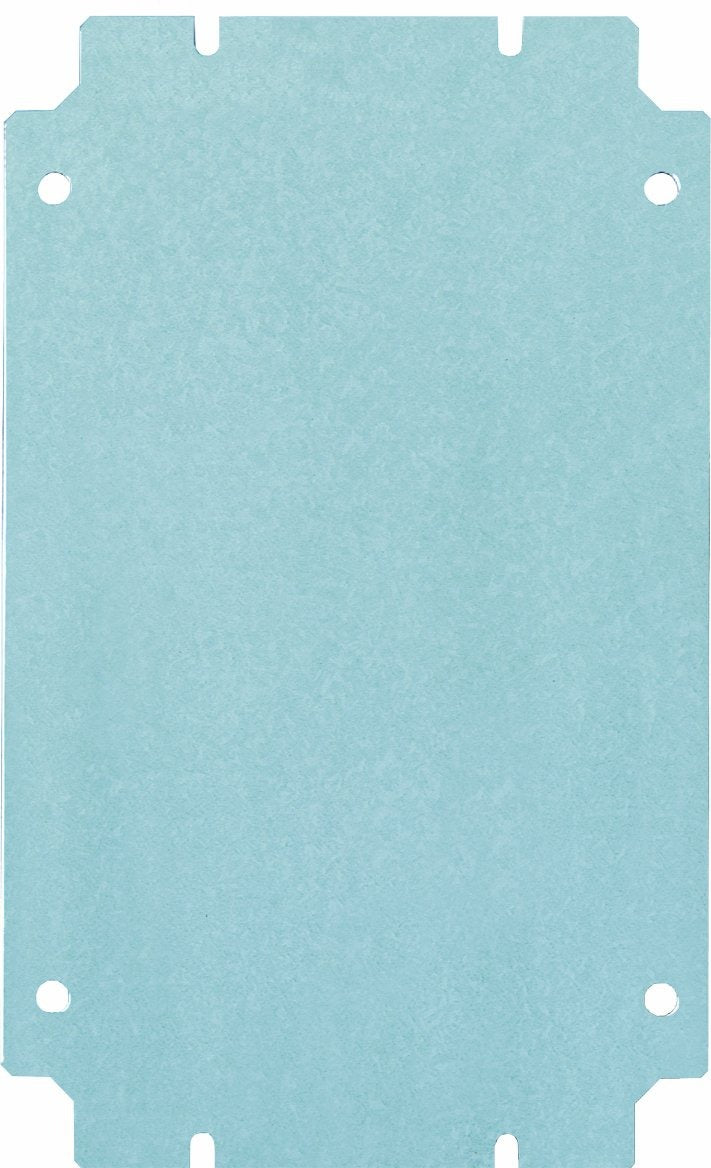

Rittal 8018192 Junction Box Mounting Panel 7x7 in

Product Description

The RITTAL 8018192 is a zinc-plated carbon steel mounting panel designed for use inside 8-inch by 8-inch junction box enclosures. Fabricated from 14 gauge carbon steel with a zinc-plated passivated finish, this panel provides a clean, corrosion-resistant surface for mounting terminal blocks, DIN rail, or other electrical components within an enclosure interior. The panel measures 7 inches wide by 7 inches high, fitting flush inside the compatible enclosure footprint. Assembly hardware is included with the enclosure. Electricians and panel builders typically install this component during new enclosure builds or retrofit upgrades.

This mounting panel is suited for residential, light commercial, and industrial electrical installations where a structured interior mounting surface is required. It is appropriate for use in junction boxes housing low-voltage controls, terminal strips, or small automation components. The zinc-plated passivated finish helps resist oxidation in typical indoor electrical environments.

Key Features

• 14 gauge carbon steel construction for rigid, stable component mounting
• Zinc-plated passivated finish provides corrosion resistance
• Sized at 7 inches wide by 7 inches high to fit inside 8 x 8 inch enclosures
• Assembly hardware included with the enclosure
• Compatible with standard enclosure mounting configurations

Compatibility

Designed as an OEM-style interior mounting panel for 8-inch by 8-inch junction box enclosures requiring a 7-inch by 7-inch panel insert.

Installation Notes

Installation is typically performed by a licensed electrician or qualified panel builder. De-energize all circuits and verify the enclosure is unpowered before inserting or securing the mounting panel. Secure the panel using the hardware included with the enclosure. Follow applicable NEC guidelines for enclosure fill, conductor routing, and component spacing when populating the panel.
