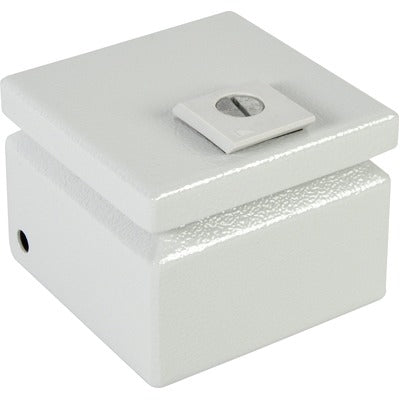

RITTAL Rittal 8018119 JB Series 1-Door Junction Box 4 x 4 x 3 in
RITTAL Rittal 8018119 JB Series 1-Door Junction Box 4 x 4 x 3 in

Rittal 8018119 JB Series 1-Door Junction Box 4 x 4 x 3 in

Brand: RITTAL
SKU: 8018119
Availability: In Stock

Ships same day if ordered by 12 pm
$59.96
$59.96
HAVE A QUESTION?

Our team is ready to help!

215-326-9845
  • Voomi Supply

    Secure Payments

  • Voomi Supply

    Easy Returns

  • Voomi Supply

    Expert Advice

  • Voomi Supply

    Fast Shipping

Description

Product Description

Rittal 8018119 is a JB Series 1-door junction box designed for protection of dense wiring and sensitive small instruments in industrial environments. The carbon steel enclosure features a hinged cover with 180° hinge, slotted insert quarter-turn latch, foamed-in-place polyurethane gasket and knife-edge perimeter, and includes a zinc-plated mounting plate. The enclosure is rated NEMA 4 / IP66 and has material thickness of 1.5 mm.

  • Carbon steel construction with 1.5 mm housing, door and mounting plate
  • Hinged cover with 180° hinge, left door catch and slotted insert quarter-turn latch
  • Foamed-in-place PU gasket and knife-edge perimeter; NEMA 4 / IP66 protection

Product Highlights

Small 4 x 4 x 3 in junction box for wall or panel mounting; includes zinc-plated mounting plate and 180° hinge; UL and cUL approvals.

Product Information

Standard Information

  • Brand: RITTAL
  • Manufacturer Part Number: 8018119
Technical Specifications
Brand
Rittal
Manufacturer Part Number
8018119
Model Number
JB040403HC
Series
JB Series
Type
1-Door Junction Box
Material
Carbon Steel (sheet steel)
Finish
Dipcoat primed, powder-coated exterior, textured paint
Dimensions (W x H x D)
3.94 x 3.94 x 3.00 in (100 x 100 x 75 mm)
Width
3.94 in (100 mm)
Height
3.94 in (100 mm)
Depth
3.00 in (75 mm)
Material Thickness
1.5 mm (housing, door, mounting plate)
Mounting Type
Wall / Panel mount (rear wall mounting holes)
Mounting Plate
Zinc-plated mounting plate included
Door Hinge Position
Left
Cover Type
Hinged
Latching System
Slotted insert quarter-turn latch (1/4-turn)
Sealing
Foamed-in-place polyurethane gasket; knife-edge perimeter
Protection Rating
IP66; NEMA 4
Ratings
IP66; UL Types 1, 12, 3R, 4 (cULus listed per sources)
Configuration
Without knock-outs
Weight (approx)
2.1 lb (net) / 2.3 lb (alternate source)
UPC / GTIN
0639889832527
Certifications and Approvals
UL, cUL Listed, RoHS Compliant
Application
Industrial - protection for dense wiring and small instruments
