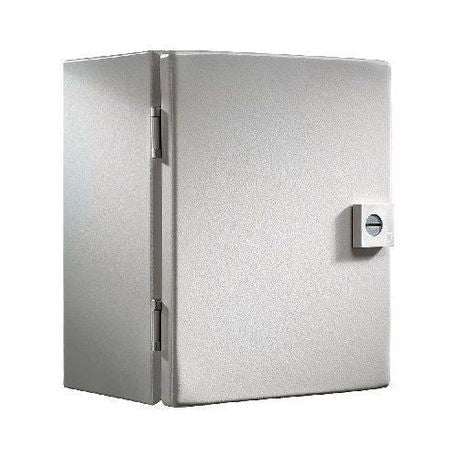

Rittal 8018102 JB Series 1-Door Junction Box 12 in W x 5.9 in D

Product Description

The Rittal 8018102 is a JB Series one-door junction box designed for industrial applications. This junction box measures twelve inches in width and five point nine inches in depth. It features a hinged cover and has a NEMA 4/IP66 rating, which ensures protection against dust and water ingress. Constructed from carbon steel, this box meets rigorous industrial standards.

• NEMA 4/IP66 rating for dust and water protection
• Hinged cover for easy access
• Made from durable carbon steel

Product Highlights

The Rittal 8018102 is ideal for housing electrical connections and protecting them from environmental factors.

Product Information

Standard Information

• Brand: Rittal
• Manufacturer: Rittal

Technical Specifications

• Width: 12 inches
• Depth: 5.9 inches
• Height: 14 inches
• Material: Carbon Steel
• NEMA Rating: NEMA 4/IP66
• Mounting Type: Wall
• Insulation: Foamed-In PU Seal
• Cover Type: Hinged
• Color: Light Gray
• Standard & Approvals: UL, cUL Listed, RoHS Complaint
