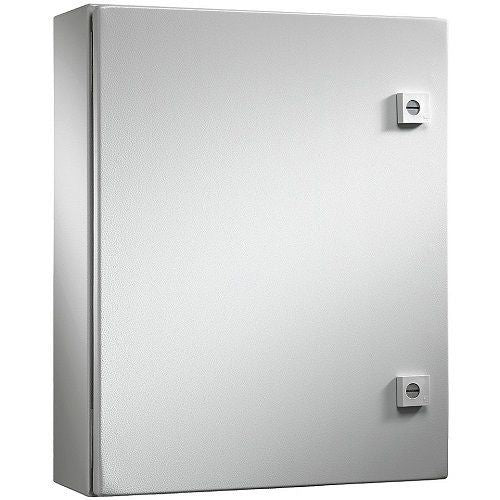

Rittal 8017607 wm wall-mounted enclosure 30x24x8in

Product Description

The RITTAL 8017607 WM series enclosures can be used for virtually any application. NEMA protection ratings are ensured through a secure locking system and foamed-in-place gasket. Features include a stainless steel body and door, and a zinc-plated mounting panel. It has a brushed surface and quarter turn latch.

• Stainless steel body and door
• Zinc plated mounting panel
• Secure locking system

Product Highlights

The Rittal WM series ensures NEMA protection through a secure locking system, foamed-in-place gasket, and knife-edge sealing surface.

Product Information

Standard Information

• Brand: RITTAL
• Manufacturer Part Number: 8017607
• Country of Origin: US

Technical Specifications

• Article no.: WM 8017607
• Model no.: WM302408N4
• Material: 304 Stainless Steel
• Surface finish: Brushed
• Supply includes: Housing with door(s) Door hinged on left Mounting plate Wall mounting blind-nuts
• Width: 24 in
• Height: 29.9 in
• Depth: 8.3 in
• Dimensions of mounting plate (W x H): 549 mm x 730 mm ( 21.6 ") x 28.7 ")
• Protection category NEMA: NEMA 4X
• Material thickness - door: 2 mm ( 0.08 ")
• Material thickness - enclosure: 1.5 mm ( 0.06 ")
• Material thickness – mounting plate: 2.5 mm ( 0.1 ")
• Lock version: Quarter turn
• Packaging unit: 1 pc(s).
• Customs tariff number: 8538100000
• Mounting Type: Wall
• Panel Size: 29 x 22 in
• Series: WM
• Type: Single Door
• Application: For industrial use
• Standard & Approvals: cUL and UL Listed, RoHS Complaint
• Cover Type: Hinged
• Insulation: Foamed-In PU Seal
• Part Number #: 8017607
• SKU #: 2125888
• Approximate Depth: 8 in
• Approximate Height: 30 in
• Approximate Width: 24 in
• Cover Locking: Quarter-Turn Latch
• Enclosure Mounting: Panel Mount
• IP Rating: IP66
• Size: Large in
• Family Series: Rittal Enclosures
• Description: WM302408N4 PK/1
• Composition: Metallic
• Number of Doors: 1
• Cover Design: Lift-Off Cover
• Window/Clear Cover: No
• Latching Mechanism: Screws
• Nominal Height: 24 "
• Nominal Width: 30 "
• Nominal Depth: 8 "
• Net Weight: 65 lbs
• Gross Weight: 65 lbs
