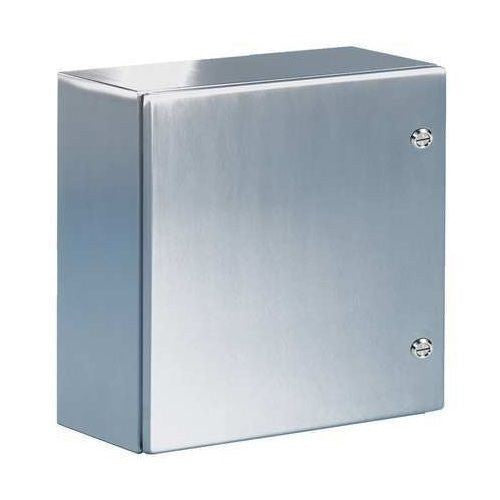

Rittal 8017606 Wm Wall-Mounted Enclosure (35 in H x 30 in W x 12 in D)

Product Description

The RITTAL 8017606 WM series enclosures can be used for virtually any application. NEMA protection ratings are ensured through a secure locking system and foamed-in-place gasket. Features include a stainless steel body and door, and a zinc-plated mounting panel. It has a brushed finish and a quarter-turn latch.

• Stainless steel body and door
• Zinc plated mounting panel
• Secure locking system

Product Highlights

The RITTAL WM series ensures NEMA protection through a secure locking system, foamed-in-place gasket, and knife-edge sealing surface.

Product Information

Standard Information

• Brand: RITTAL
• Manufacturer Part Number: 8017606

Technical Specifications

• Article no.: WM 8017606
• Model no.: WM363012N4
• Material: Door: Stainless steel, all-round foamed-in PU seal Housing and door: Stainless steel 1.4301 (AISI 304) Mounting plate: Carbon steel, zinc-plated
• Surface finish: Brushed
• Supply includes: Housing with door(s) Door hinged on left Mounting plate Wall mounting blind-nuts
• Width: 30 in
• Height: 35.4 in
• Depth: 12 in
• Dimensions of mounting plate (W x H): 704 mm x 870 mm
• Protection category NEMA: NEMA 4X
• Material thickness - door: 2 mm
• Material thickness - enclosure: 2 mm
• Material thickness mounting plate: 2.5 mm
• Lock: Quarter Turn Latch
• Mounting Type: Wall
• Cover Type: Hinged
• Series: WM Series
• Type: Single Door
• Application: For industrial use
• Insulation: Foamed-In PU Seal
• Standard & Approvals: cUL and UL Listed, RoHS Complaint
• Panel Size: 34 x 28 in
• NEMA Rating: NEMA 4X
