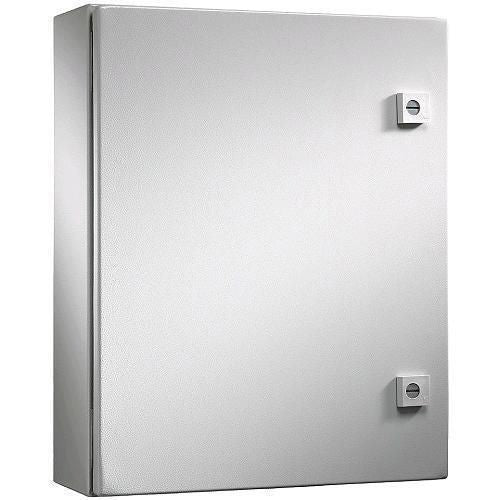

Rittal 8017576 WM Series 1-Door Compact Enclosure 24 in W x 30 in H x 12 in D

Product Description

The Rittal 8017576 WM Series 1-Door Compact Enclosure is designed for maximum space utilization and ease of installation. This compact enclosure is suitable for various applications, ensuring NEMA protection through a secure locking system, foamed-in-place gasket, and knife-edge perimeter. It features a body constructed of cold rolled steel, steel doors, and zinc-plated mounting panels. The enclosure measures 24 inches wide, 30 inches high, and 12 inches deep, providing robust protection for electrical components.

• Maximizes space utilization and simplifies installation.
• Ensures NEMA protection with a secure locking system, foamed-in-place gasket, and knife-edge perimeter.
• Constructed from cold rolled steel for the body, with steel doors and zinc-plated mounting panels.

Product Highlights

This Rittal WM Series enclosure offers robust protection and efficient space management for diverse electrical applications.

Product Information

Standard Information

• Brand: RITTAL
• Manufacturer Part Number: 8017576
• Country of Origin: US

Technical Specifications

• Series: WM Series
• Enclosure Type: Compact Wallmount Enclosure
• Door Type: Single Door
• Cover Type: Hidden Hinged
• NEMA Rating: NEMA 4/IP66
• Material: Carbon Steel
• Material Gauge: 16 Gauge
• Material Thickness: 0.059 in (1.50 mm)
• Mounting Panel Size: 29 x 22 in
• Color: Light Gray
• Lock Type: Slotted Quarter Turn Latch
• Mounting Type: Wall
• Finish: Dip Coat Primed/Powder Coated
• Insulation: Foamed-in PU Seal
• Application: Industrial and Plant Floor Environment
• Certifications: UL Type 1, 3R, 4, 12, UL/cUL Type 1, 12, 3R, 4, RoHS Compliant
• Part Number Alias: WM302412NC
