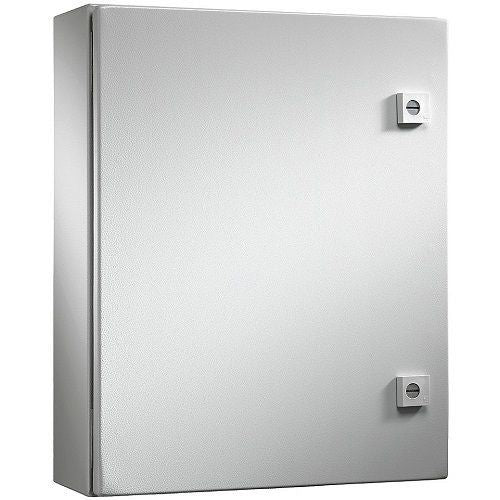

Rittal 8017563 Wm Wall-Mounted Enclosure 30 (H) x 24 (W) x 9.8 (D) IN

Brand: RITTAL
SKU: 8017563
Availability: In Stock

Ships via freight in 1-3 business days

%3Cp%3EEarn%20[points_amount]%20when%20you%20buy%20this%20item.%3C/p%3E
$358.32
$358.32
LTL Delivery

This product weighs 59 lb each and will be shipped via LTL carrier. A lift gate option will be added free of charge for your convenience.

HAVE A QUESTION?

Our team is ready to help!

215-326-9845
  • Voomi Supply

    Secure Payments

  • Voomi Supply

    Easy Returns

  • Voomi Supply

    Expert Advice

  • Voomi Supply

    Fast Shipping

Description

Product Description

The RITTAL 8017563 WM series single door wallmount enclosures can be used for virtually any application. It ensures NEMA protection through a secure locking system, foamed-in-place gasket, and knife-edge sealing surface. Features include a cold rolled steel body and door, and a zinc plated mounting panel.

  • Secure locking system
  • Foamed-in-place gasket
  • Knife-edge sealing surface

Product Highlights

The WM compact enclosures are readily available in popular sizes and configurations. Suitable for industrial and plant floor environments.

Product Information

Standard Information

  • Brand: RITTAL
  • Manufacturer Part Number: 8017563
  • Country of Origin: US

Technical Specifications

  • Article no.: WM 8017563
  • Model no.: WM302410NC
  • Material Door: Carbon steel, all-round foamed-in PU seal
  • Housing Material: Carbon steel
  • Surface finish Housing and door: Dipcoat primed, powder-coated on the outside, textured paint
  • Mounting panel Surface finish: Zinc-plated
  • Color: RAL 7035
  • Supply includes: Housing with door(s), Door hinged on left, Mounting plate, Rear wall mounting holes, Quarter turn latch with slotted head insert
  • Width: 24 in
  • Height: 29.9 in
  • Depth: 9.8 in
  • Dimensions of mounting plate (W x H): 549 mm x 730 mm (21.6 " x 28.7 ")
  • Protection category NEMA: NEMA 4/IP66
  • Material thickness - door: 2 mm (0.08 ")
  • Material thickness - enclosure: 1.5 mm (0.06 ")
  • Material thickness ">– mounting plate: 2.5 mm (0.1 ")
  • Brand: Rittal
  • Part Number #: 8017563
  • Finish: Dipcoat Primed/Powder Coated
  • Insulation: Foamed-In PU Seal
  • Panel Size: 29 x 22 in
  • Type: 1-Door Compact
  • Lock: Quarter-Turn Slotted Latch
  • Mounting: Wall Mounting
  • Material: Carbon Steel
  • Series: WM Series
  • Size IN: 30 (H) x 24 (W) x 9.8 (D)
  • IP Rating: IP66
  • Construction: Multi-Fold Single Piece Body Construction
  • Cover Type: Concealed Hinged
  • Mounting Type: Wall
  • Ratings: NEMA 1,3R,4,12
  • Standard & Approvals: UL, cUL Listed, RoHS Complaint
  • Length: 30 in
  • Catalog ID: RTLWM302410NC
  • Category: Boxes, Enclosures, Racks
  • Boxes: Boxes
  • Height (in): 29.900" (759.46mm)
  • Mfr: Rittal
  • Design: Hinged Door
  • Metal: Metal, Steel
  • Part Status: Active
  • Container Type: Enclosure
  • Thickness: 0.059" (1.50mm)
  • Size / Dimension: 23.600" L x 9.840" W (599.44mm x 249.94mm)
